LC2D09BLV

REVERSING CONTACTOR 575VAC 9A IEC - Schneider Electric - LC2D09BLV

Control

~~List Price £153.82 +VAT~~

Our Price £115.37 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

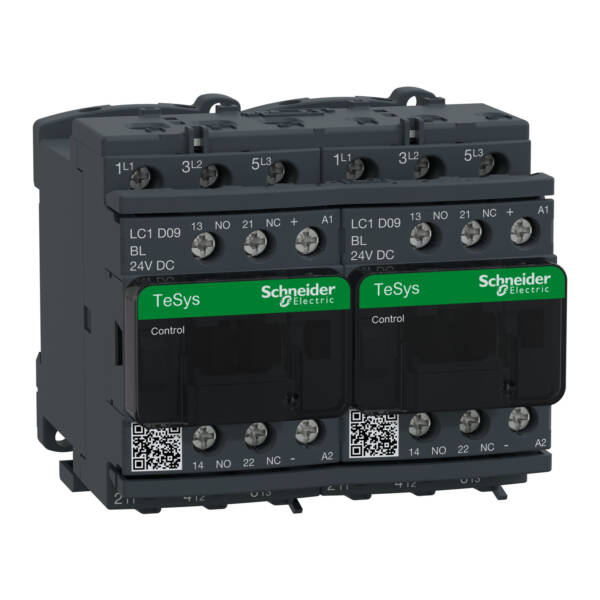

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/440V AC-3/3e (4kW@400V). It is provided with 24V DC low consumption coils with integral transient suppressor modules, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. It is suitable for operating rates until 3600 cycles/hour and environment temperature until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2D09BLV
Weight (kg): 1.15 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated operation power at AC-3, 400 V: 4
Type of electrical connection for auxiliary- and control current circuit: Screw connection
Voltage type (operating voltage): DC
Rated operation power NEMA: 3.73
Rated operation current Ie at AC-1, 400 V: 20
Voltage type for actuating: DC
Height: 77
Rated operation current Ie at AC-3, 400 V: 9
Degree of protection (IP): IP20
Width: 90
Rail mounting possible: TRUE
Number of normally open contacts as main contact: 3
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Depth: 95
Operating voltage DC: 440 Volt
Rated control supply voltage DC: 24 Volt
Function: Reversing contactor
Degree of protection (NEMA): Other
