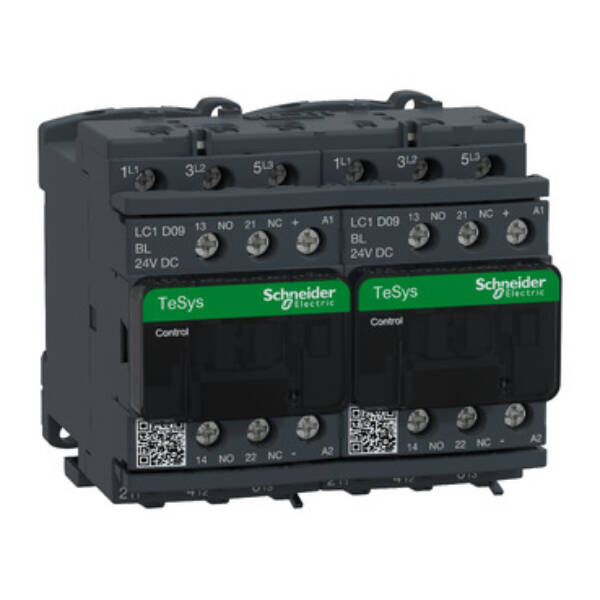

LC2D09BL
REVERSING CONTACTOR 575VAC 9A IEC - Schneider Electric - LC2D09BL
Automation
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Our Price £115.37 +VAT
SAVE 25% OFF List Price
Specifications
- Brand
- Schneider Electric
- Type
- TeSys Deca contactors
- Range
- TeSys Deca contactors
- Part No
- LC2D09BL
- Weight (kg)
- 1.14 kg
