REVERSING CONTACTOR 575VAC 32A IEC - Schneider Electric - LC2D32BD

REVERSING CONTACTOR 575VAC 32A IEC - Schneider Electric - LC2D32BD

LC2D32BD

REVERSING CONTACTOR 575VAC 32A IEC - Schneider Electric - LC2D32BD

Control

~~List Price £456.70 +VAT~~

Our Price £342.53 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

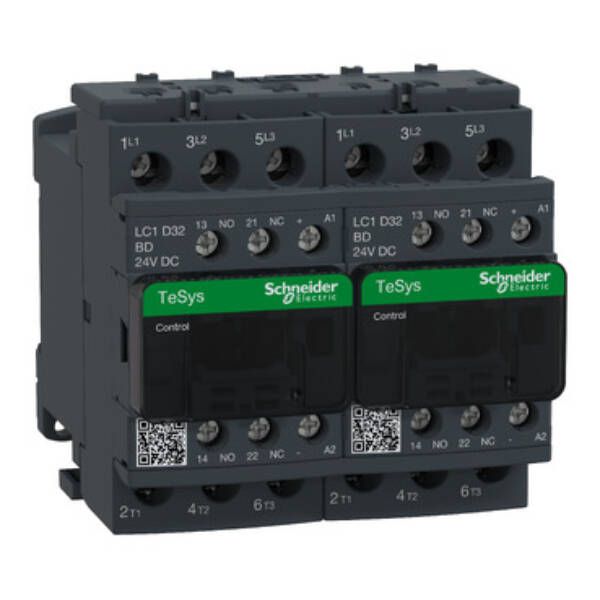

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 32A/440V AC-3/3e (15kW@400V). It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2D32BD
Weight (kg): 1.28 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Rated operation power NEMA: 14.9
Rated operation current Ie at AC-3, 400 V: 32
Voltage type for actuating: DC
Rated control supply voltage Us at DC: 24 V
Degree of protection (IP): IP20
Function: Reversing safety
Rated operation power at AC-3, 400 V: 15
Degree of protection (NEMA): Other
