LC2DT25BD

REVERSING CONTACTOR 575VAC 25A IEC - Schneider Electric - LC2DT25BD

Control

~~List Price £246.10 +VAT~~

Our Price £184.58 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

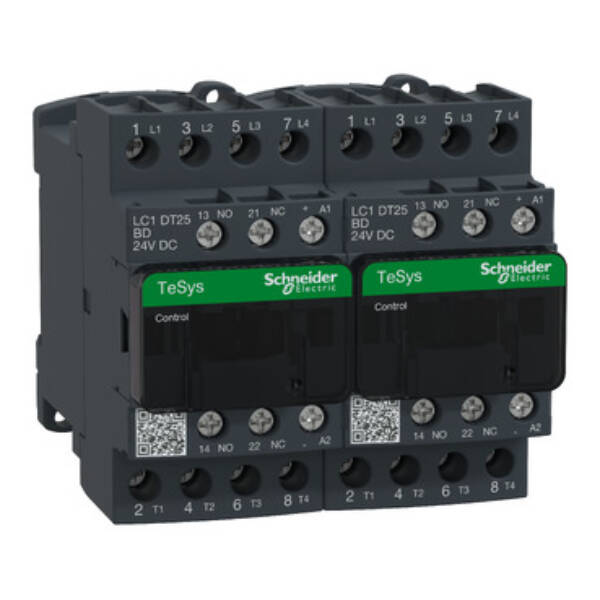

TeSys Deca changeover contactor, 4 poles (4NO), for non-inductive load applications up to 25A/440V AC-1. It provides 24V DC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired changeover power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Brand: Schneider Electric
Range: TeSys Deca contactors
Part No: LC2DT25BD
Weight (kg): 1.20 kg
Type: TeSys Deca contactors
Type of electrical connection of main circuit: Screw connection
Type of electrical connection for auxiliary- and control current circuit: Screw connection
Voltage type (operating voltage): DC
Rated operation current Ie at AC-1, 400 V: 25
Height: 85
Voltage type for actuating: DC
Degree of protection (IP): IP20
Width: 90
Rail mounting possible: TRUE
Number of normally closed contacts as main contact: 2
Number of normally open contacts as main contact: 2
Number of auxiliary contacts as normally closed contact: 1
Number of auxiliary contacts as normally open contact: 1
Depth: 90
Operating voltage DC: 440 Volt
Rated control supply voltage DC: 24 Volt
Function: Changeover contactor
Degree of protection (NEMA): Other
