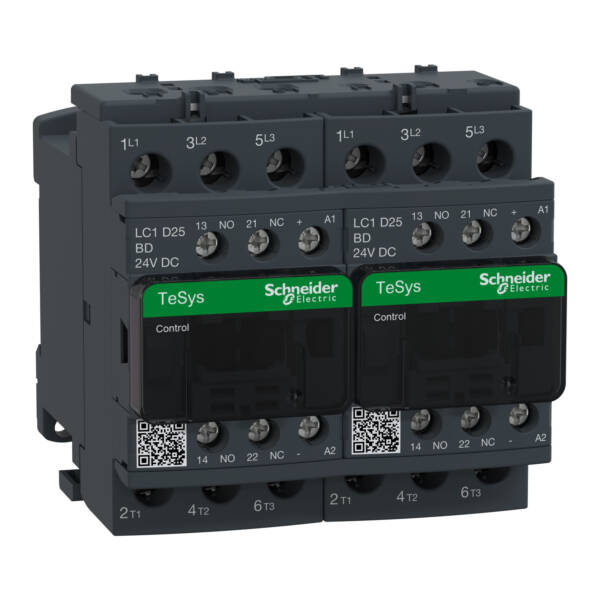

REVERSING CONTACTOR 575VAC 25A IEC - Schneider Electric - LC2D25BD
REVERSING CONTACTOR 575VAC 25A IEC - Schneider Electric - LC2D25BD

LC2D25BD

REVERSING CONTACTOR 575VAC 25A IEC - Schneider Electric - LC2D25BD

Control

List Price £351.40 +VAT

Our Price £263.55 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 25A/440V AC-3/3e (11kW@400V). It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D25BD
Weight (kg)
1.27 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated operation power NEMA
11.2
Rated control supply voltage Us at DC
24 V
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
25
Degree of protection (IP)
IP20
Function
Reversing safety
Rated operation power at AC-3, 400 V
11
Degree of protection (NEMA)
Other

Datasheet for LC2D25BD - REVERSING CONTACTOR 575VAC 25A IEC - Schneider Electric - LC2D25BD
