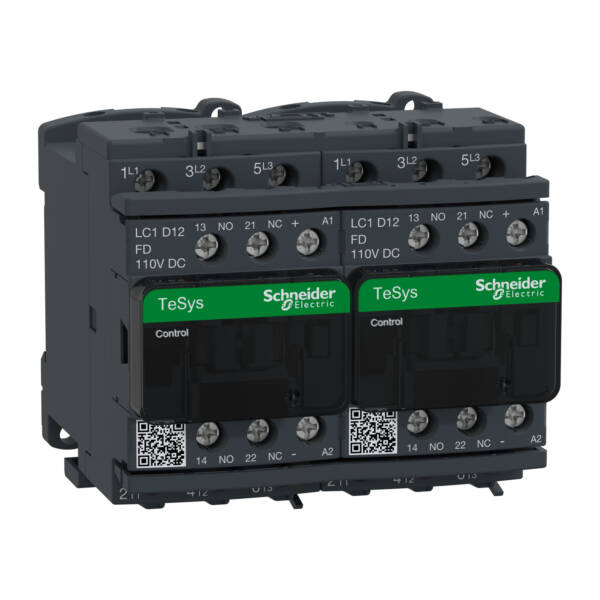

REVERSING CONTACTOR 575VAC 12A IEC - Schneider Electric - LC2D12FD
REVERSING CONTACTOR 575VAC 12A IEC - Schneider Electric - LC2D12FD

LC2D12FD

REVERSING CONTACTOR 575VAC 12A IEC - Schneider Electric - LC2D12FD

Control

List Price £240.18 +VAT

Our Price £180.14 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides 110V DC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), with DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC2D12FD
Weight (kg)
0.73 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated operation power NEMA
5.59
Rated operation current Ie at AC-3, 400 V
12
Voltage type for actuating
DC
Rated control supply voltage Us at DC
110 V
Degree of protection (IP)
IP20
Function
Reversing safety
Rated operation power at AC-3, 400 V
5.5
Degree of protection (NEMA)
Other

Datasheet for LC2D12FD - REVERSING CONTACTOR 575VAC 12A IEC - Schneider Electric - LC2D12FD
