LU6MB0BL

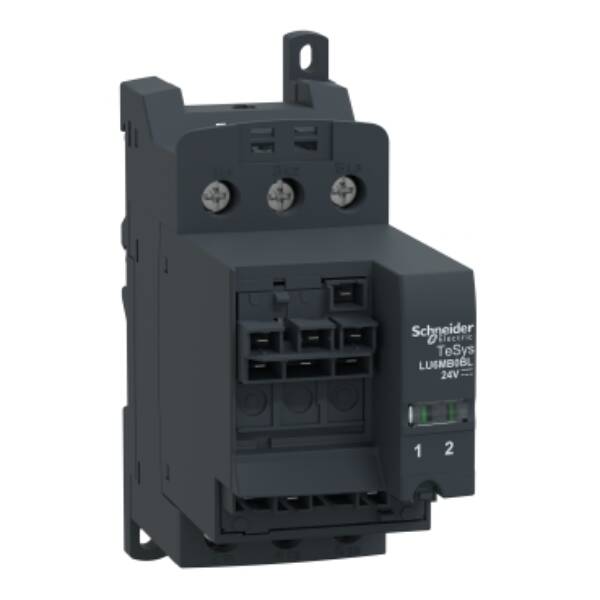

Reverser block for side mounting, TeSys U, 38A/690V, coil 24V DC - Schneider Electric - LU6MB0BL

Control

~~List Price £165.75 +VAT~~

Our Price £124.31 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24 DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*BL type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting. compliant (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LU6MB0BL
Weight (kg): 0.44 kg
Type: TeSys U
Type of electrical connection of main circuit: Screw connection
Rated operation power at AC-3, 400 V: 18.5
Type of electrical connection for auxiliary- and control current circuit: Screw connection
Voltage type (operating voltage): DC
Rated operation power NEMA: 14.9
Voltage type for actuating: DC
Height: 83.8
Rated operation current Ie at AC-3, 400 V: 38
Degree of protection (IP): IP20
Width: 44.8
Rail mounting possible: TRUE
Operating voltage AC 50 Hz: 690 Volt
Depth: 112
Operating voltage AC 60 Hz: 690 Volt
Rated control supply voltage DC: 24 Volt
Function: Reversing contactor
Degree of protection (NEMA): Other
