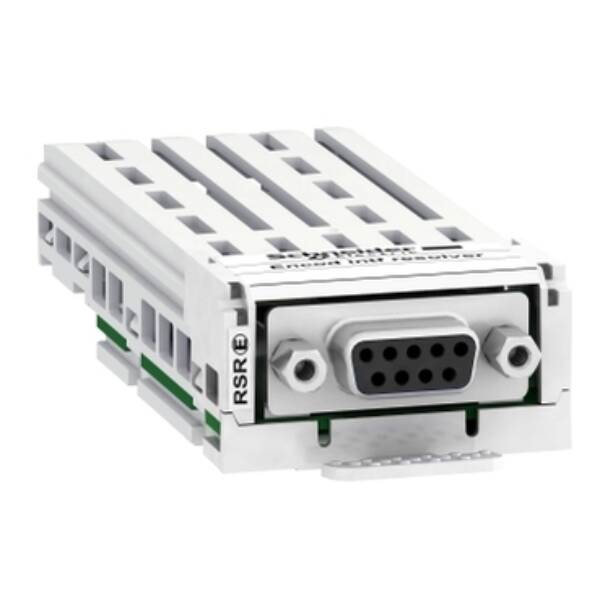

This resolver encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female SUB-D 9 connector.
Brand
Schneider Electric
Range
Altivar Process ATV900
Part No
VW3A3423
Weight (kg)
0.16 kg
Type
Altivar Process ATV900
Type of accessory
Encoder input module
Datasheet for VW3A3423 - resolver interface module - Schneider Electric - VW3A3423
