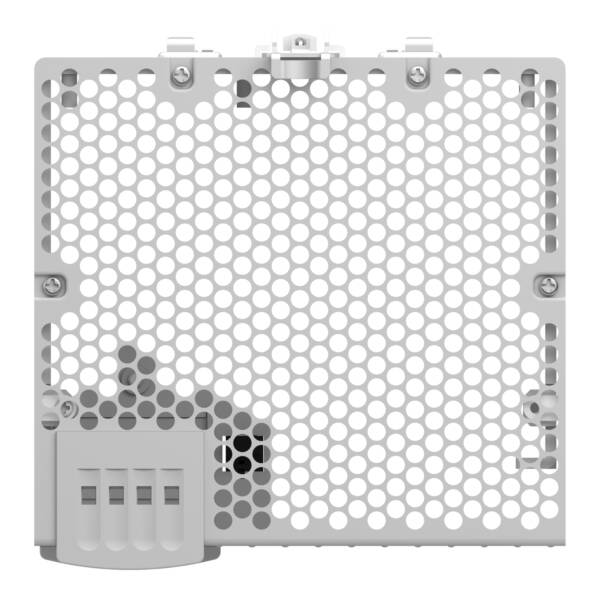

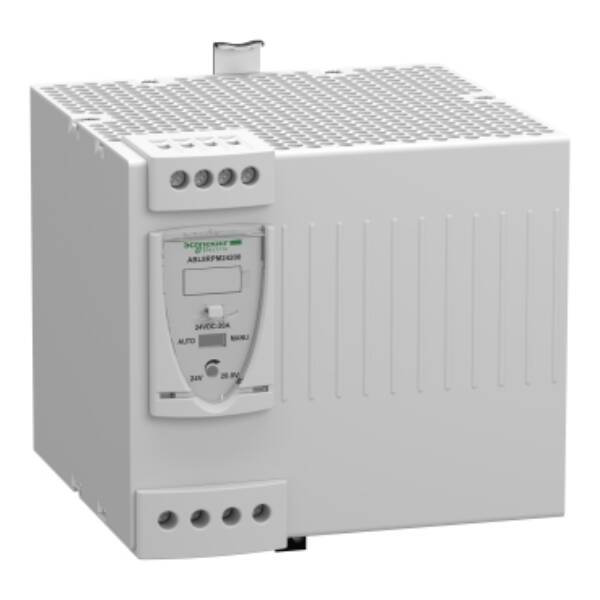

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,600kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD16 and GB2CD12 thermal magnetic circuit breakers The GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Brand

Schneider Electric

Range

Power supplies for industrial use, rail mounting

Part No

ABL8RPM24200

Weight (kg)

2.82 kg

Type

Power supplies for industrial use, rail mounting

Type of electric connection

Screw connection

Direct mounting possible

TRUE

Voltage type of supply voltage

AC/DC

Stabilized

TRUE

Modular version

FALSE

SIL according to IEC 61508

None

Short-circuit-proof

TRUE

Performance level acc. EN ISO 13849-1

None

Nominal value output current 1

20

Height

143

Power output

480

Rated supply voltage at AC 50 Hz

100…240 V

Degree of protection (IP)

IP20

Rated supply voltage at AC 60 Hz

100…240 V

Nominal value output voltage 1

24

Max. output current 1

20

Output voltage stabilized

TRUE

Width

146

Rail mounting possible

TRUE

Wall mounting possible

FALSE

Suitable for safety functions

TRUE

Depth

145

Secondary voltage adjustable

TRUE

1st secondary output voltage

24…28.8 V
