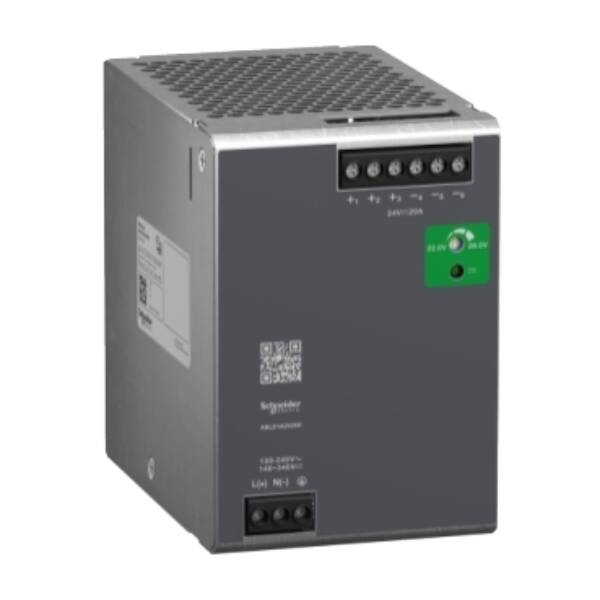

This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 85,5mm, its height is 123,6mm, its depth is 128,5mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 1.250kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 13A, C curve or 16A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Brand

Schneider Electric

Range

Power supplies for industrial use, rail mounting

Part No

ABLS1A24200

Weight (kg)

1.42 kg

Type

Power supplies for industrial use, rail mounting

Direct mounting possible

FALSE

Type of electric connection

Screw connection

Voltage type of supply voltage

DC

Stabilized

TRUE

Built-in height

123.6

SIL according to IEC 61508

None

Modular version

FALSE

Short-circuit-proof

TRUE

Performance level acc. EN ISO 13849-1

None

Rated supply voltage at AC 50 Hz

100…240 V

Nominal value output current 1

20

Height

123.6

Power output

480

Rated supply voltage at AC 60 Hz

100…240 V

Degree of protection (IP)

IP20

Rated supply voltage at DC

140…340 V

Nominal value output voltage 1

24

Max. output current 1

20

Output voltage stabilized

TRUE

Width

85.5

Built-in width

85.5

Rail mounting possible

TRUE

Wall mounting possible

FALSE

Suitable for safety functions

FALSE

Depth

128.5

1st secondary output voltage

24 V

Secondary voltage adjustable

TRUE
