red flush complete illum pushbutton Ø22 spring return 1NO+1NC 250V - Schneider Electric - XB4BW3465
red flush complete illum pushbutton Ø22 spring return 1NO+1NC 250V - Schneider Electric - XB4BW3465

XB4BW3465

red flush complete illum pushbutton Ø22 spring return 1NO+1NC 250V - Schneider Electric - XB4BW3465

Control

List Price £28.07 +VAT

Our Price £21.05 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

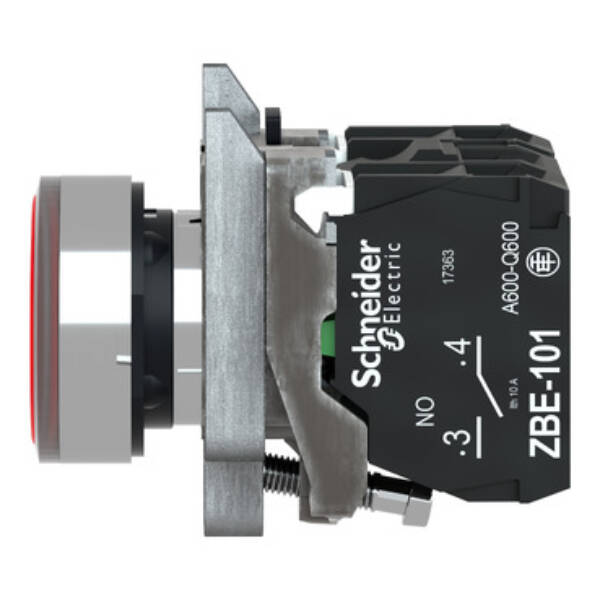

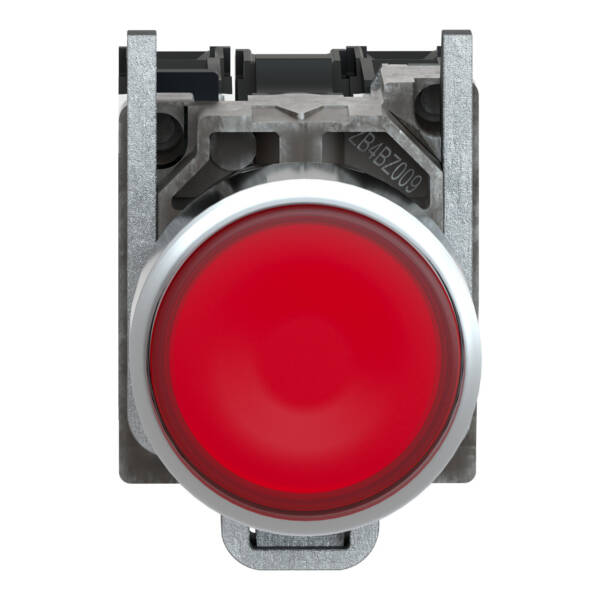

This Harmony XB4 plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Brand
Schneider Electric
Range
Harmony XB4
Part No
XB4BW3465
Weight (kg)
0.10 kg
Type
Harmony XB4
Spring-return
TRUE
Colour front ring
Chrome
Type of electric connection
Screw connection
Material front ring
Metal
Supply voltage lamp
250
Hole diameter
22.5
Switching function latching
FALSE
Type of button
Flat
Number of contacts as normally open contact
1
Construction type lens
Round
Colour button
Red
With front ring
TRUE
Suitable for illumination
TRUE
Degree of protection (IP)
IP66
Number of command positions
1
Transparent
TRUE
Number of contacts as normally closed contact
1
Degree of protection (NEMA)
4X

Datasheet for XB4BW3465 - red flush complete illum pushbutton Ø22 spring return 1NO+1NC 250V - Schneider Electric - XB4BW3465

Download
