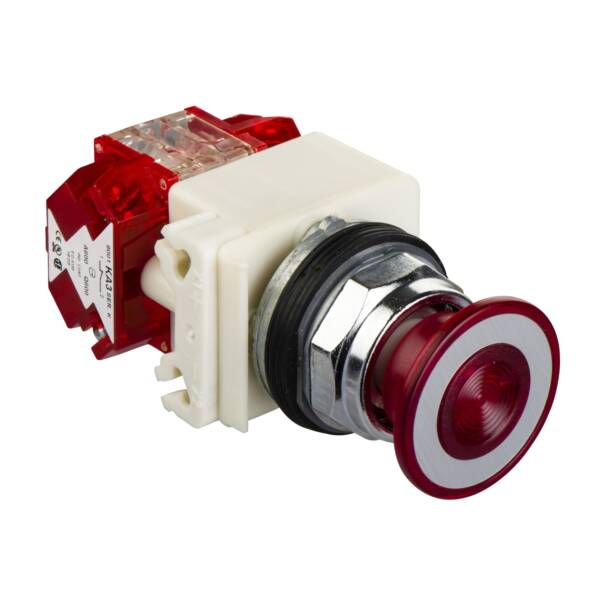

This Harmony 9001K, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with 110V AC/DC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Brand

Schneider Electric

Range

Harmony 9001 K

Part No

9001KR9P38RH25

Weight (kg)

0.23 kg

Type

Harmony 9001 K

Spring-return

FALSE

Colour front ring

Chrome

Type of electric connection

Screw connection

Material front ring

Metal

Hole diameter

31

Supply voltage lamp

120

Switching function latching

TRUE

Type of button

Mushroom

Construction type lens

Round

Colour button

Red/green

With front ring

TRUE

Suitable for illumination

TRUE

Degree of protection (IP)

IP66

Number of contacts as normally closed contact

2

Number of command positions

2

Transparent

FALSE

Degree of protection (NEMA)

13
