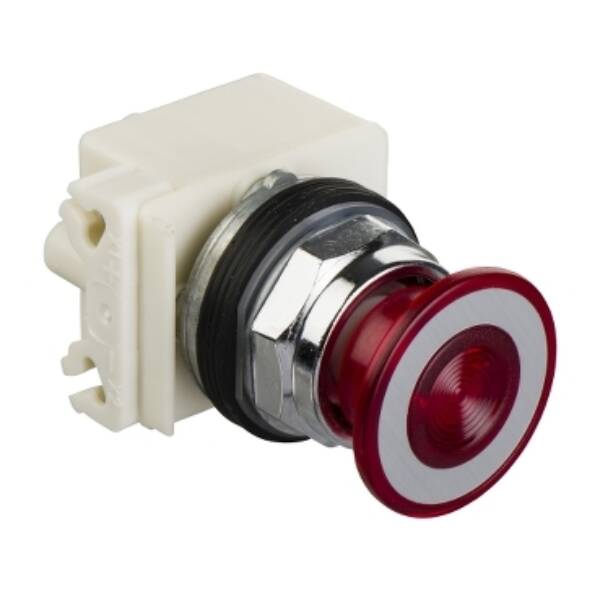

This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with a red mushroom diameter 41mm, unmarked It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions stay put operator and it is supplied with 24V AC/DC and with super bright LED, included. It weighs 186g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand
Schneider Electric
Range
Harmony 9001 K
Part No
9001KR9P35LRR
Weight (kg)
0.12 kg
Type
Harmony 9001 K
Spring-return
FALSE
Colour front ring
Chrome
Type of electric connection
Screw connection
Supply voltage lamp
24
Hole diameter
31
Material front ring
Metal
Switching function latching
TRUE
Type of button
Mushroom
Construction type lens
Round
Colour button
Red/green
With front ring
TRUE
Suitable for illumination
TRUE
Degree of protection (IP)
IP66
Number of command positions
1
Degree of protection (NEMA)
13
