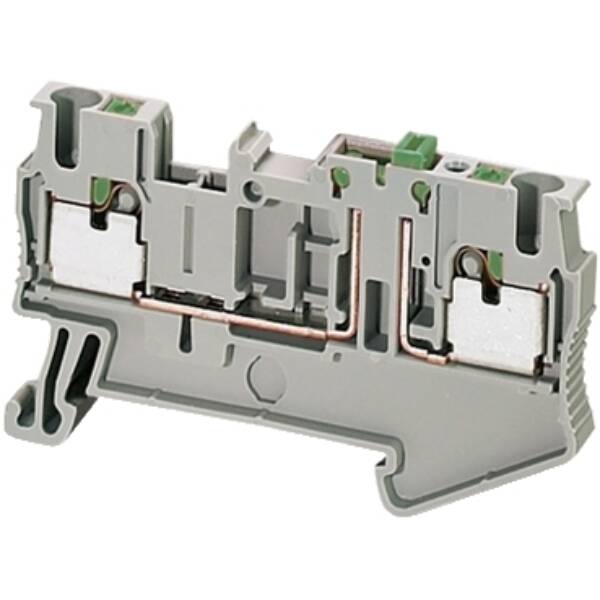

PUSH-IN TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², GREY - Schneider Electric - NSYTRP22SC
PUSH-IN TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², GREY - Schneider Electric - NSYTRP22SC

NSYTRP22SC

PUSH-IN TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², GREY - Schneider Electric - NSYTRP22SC

Enclosures

List Price £6.44 +VAT

Our Price £4.83 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Linergy TR is terminal block for Blade Disconnect type. It belongs to linergy blade Disconnect terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/UL and 400V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL). It is compliant with Green Premium (RoHS/REACH).
Brand
Schneider Electric
Range
Linergy TR terminals blocks
Part No
NSYTRP22SC
Weight (kg)
0.01 kg
Type
Linergy TR terminals blocks

Datasheet for NSYTRP22SC - PUSH-IN TERMINAL, KNIFE DISCONNECT, 2 POINTS, 2,5MM², GREY - Schneider Electric - NSYTRP22SC
