NSYTRP24

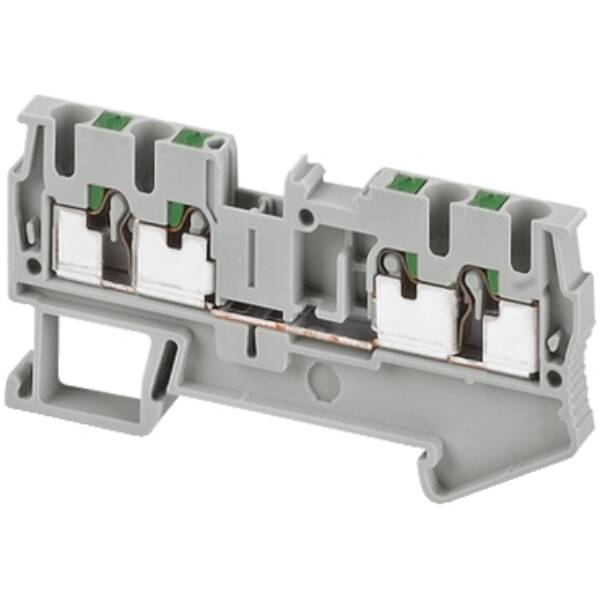

PUSH-IN TERMINAL, FEED THROUGH, 4 POINTS, 2,5MM², GREY - Schneider Electric - NSYTRP24

Enclosures

~~List Price £1.55 +VAT~~

Our Price £1.16 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

Linergy TR is terminal block for Passthrough type. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. The surface grey surface treatment Mounting by clip-on and top connection by single-level 2x2 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy TR terminals blocks
Part No: NSYTRP24
Weight (kg): 0.01 kg
Type: Linergy TR terminals blocks
Number of levels: 1
Colour: Grey
craft\elements\db\ElementQuery: 72
craft\elements\db\ElementQuery: Plug-in connection
craft\elements\db\ElementQuery: 800
craft\elements\db\ElementQuery: Plug-in connection
Internally connected stages: FALSE
craft\elements\db\ElementQuery: V0
craft\elements\db\ElementQuery: DIN rail (top hat rail) 35 mm
craft\elements\db\ElementQuery: 36.5
craft\elements\db\ElementQuery: 0.14…4 mm²
craft\elements\db\ElementQuery: 5.2
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: Above
Connectable conductor cross section fine-strand with cable end sleeve: 0.2…2.5 mm²
craft\elements\db\ElementQuery: TRUE
Connectable conductor cross section multi-wired: 0.14…2.5 mm²
craft\elements\db\ElementQuery: Thermoplastic
craft\elements\db\ElementQuery: -40…130 °C
Connectable conductor cross section fine-strand without cable end sleeve: 0.08…2.5 mm²
Number of clamp positions per level: 4
craft\elements\db\ElementQuery: 24
