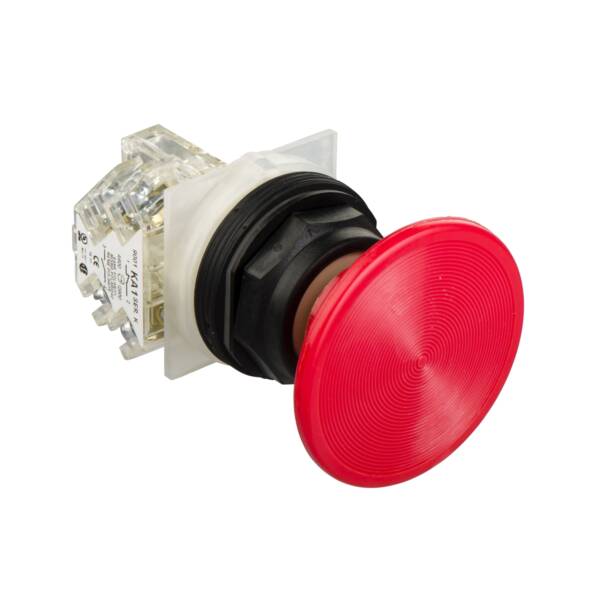

This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 57mm mushroom head and 1 x NC contact. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Brand

Schneider Electric

Range

Harmony 9001 SK

Part No

9001SKR5RH6

Weight (kg)

0.23 kg

Degree of protection (IP)

IP66

Number of contacts as normally closed contact

1

With lighting

FALSE

Degree of protection (NEMA)

Other

Connection type auxiliary circuit

Screw connection

Hole diameter

31

Supply voltage lamp

600

Diameter cap

57

Mounting method

Built-in

Unlocking method

Pull-release
