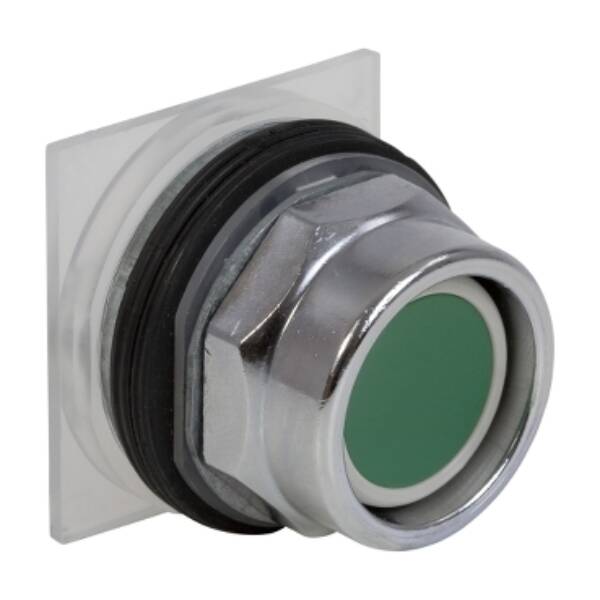

This Harmony 9001K, modular recessed green push button with extended guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO + 1 x NC contact and uses screw-clamp terminals. This recessed push button with extended guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Brand

Schneider Electric

Range

Harmony 9001 K

Part No

9001KR2GH13

Weight (kg)

0.23 kg

Spring-return

TRUE

Colour front ring

Chrome

Type of electric connection

Screw connection

Material front ring

Metal

Hole diameter

31

Switching function latching

FALSE

Type of button

Flat

Construction type lens

Round

Colour button

Green

With front ring

TRUE

Suitable for illumination

TRUE

Degree of protection (IP)

Other

Number of command positions

2

Degree of protection (NEMA)

13
