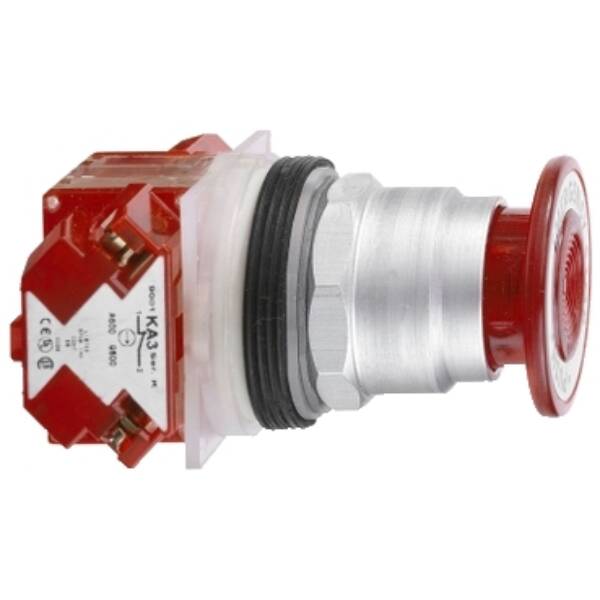

This Harmony 9001K, modular red push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NC contact. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Brand

Schneider Electric

Range

Harmony 9001 K

Part No

9001KR9R21H6

Weight (kg)

0.23 kg

Type

Harmony 9001 K

Spring-return

FALSE

Colour front ring

Chrome

Type of electric connection

Screw connection

Material front ring

Metal

Hole diameter

31

Switching function latching

TRUE

Type of button

Mushroom

Construction type lens

Round

Colour button

Red/green

With front ring

TRUE

Degree of protection (IP)

IP66

Suitable for illumination

FALSE

Transparent

FALSE

Number of contacts as normally closed contact

1

Number of command positions

1

Degree of protection (NEMA)

13
