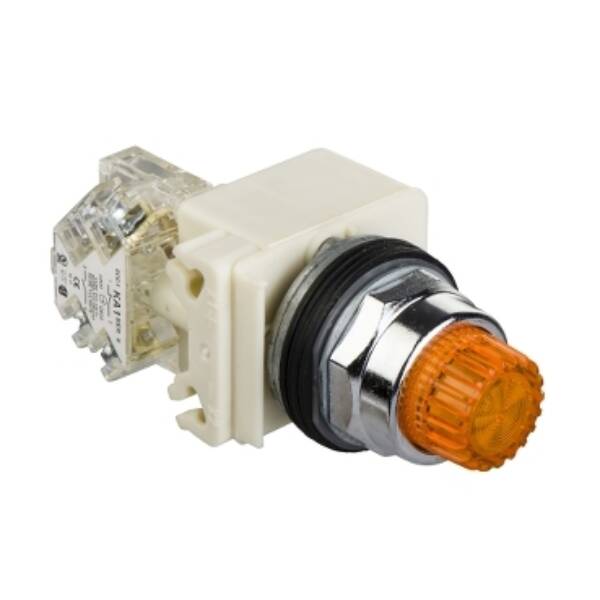

This Harmony 9001K, modular illuminated projecting amber push button is supplied with contact block. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Brand

Schneider Electric

Range

Harmony 9001 K

Part No

9001K2L35LYAH13

Weight (kg)

0.23 kg

Type

Harmony 9001 K

Spring-return

TRUE

Colour front ring

Chrome

Type of electric connection

Screw connection

Supply voltage lamp

24

Material front ring

Metal

Hole diameter

31

Switching function latching

FALSE

Type of button

High

Construction type lens

Round

Number of contacts as change-over contact

1

Colour button

Orange

With front ring

TRUE

Suitable for illumination

TRUE

Degree of protection (IP)

IP66

Number of command positions

1

Transparent

TRUE

Degree of protection (NEMA)

13
