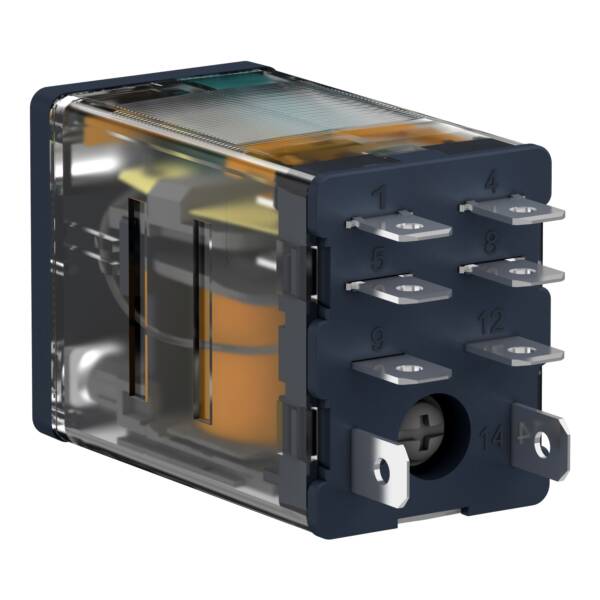

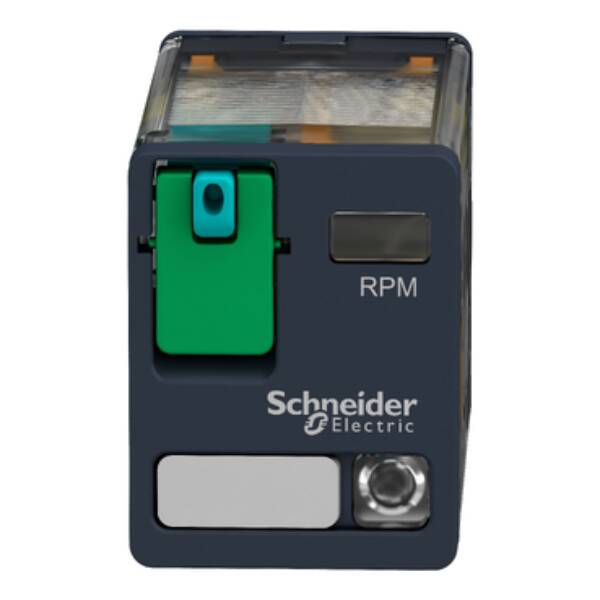

This Harmony RPM power plug-in relay has a coil control voltage of 48V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0 0 0
Brand
Schneider Electric
Range
Harmony Electromechanical Relays
Part No
RPM22ED
Weight (kg)
0.04 kg
Type
Harmony Electromechanical Relays
Width
21
Drive, switching attitude
Mono stable
Type of electric connection
Plug-in connection
With forced-guided contacts
TRUE
Nominal current
15
Drive, polarization
Polarity free
With LED indication
TRUE
Type of switch contact
Double contact
Depth
53
Complete with socket
FALSE
Number of contacts as change-over contact
2
Voltage type for actuating
DC
Height
27
Rated control supply voltage Us at DC
48 V
Degree of protection (IP)
IP40
With detachable clamps
TRUE
Datasheet for RPM22ED - Power plug-in relay, 15 A, 2 CO, with LED, 48 V DC - Schneider Electric - RPM22ED
