Brand
-
Schneider Electric
-
Range
-
Lighting & power sockets
-
Part No
-

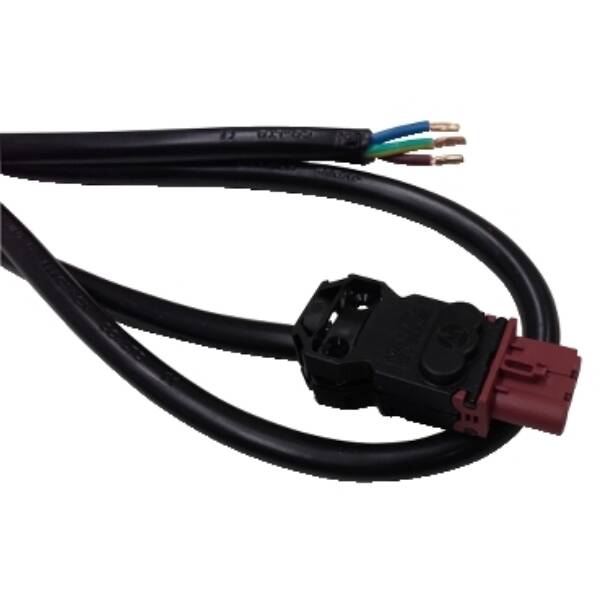

NSYLAM3MDC
-
Weight (kg)
-
0.34 kg
-
Type
-
Lighting & power sockets
-
Armouring/reinforcement
-
None
-
Torsion resistant
-
TRUE
-
With protective conductor
-
TRUE
-
Low temperature resistant according to EN 60811-504+505+506
-
TRUE
-
Halogen free according to EN IEC 60754-2
-
TRUE
-
Oil resistant according to EN IEC 60811-404
-
TRUE
-
Specification material outer sheath
-
Polyethylene (PE)
-
Specification core insulation
-
Polyethylene (PE)
-
Nominal voltage U
-
250
-
Colour outer sheath
-
Black
-
Stranding element
-
Triple
-
Material armouring
-
Copper
-
Cable width approx.
-
3000
-
Reaction-to-fire according to EN 13501-6: Acidity
-
A1
-
Low smoke according to EN IEC 61034-2
-
TRUE
-
Reaction-to-fire according to EN 13501-6: Smoke production
-
S2
-
Reaction-to-fire according to EN 13501-6: Class
-
Eca
-
Halogen free according to EN IEC 60754-3
-
TRUE
-
Conductor surface
-
Other
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
-
D0
-
Protective barrier
-
Rubber - ethylene propylene rubber (EPR)
-
Material outer sheath
-
Other
-
Screen over stranding
-
None
-
Max. conductor temperature
-
65
-
Nominal cross section conductor (AWG)
-
10
-
Outer diameter approx.
-
14
-
Shape of conductor
-
Round
-
Drain wire
-
FALSE
-
Screen over stranding element
-
None
-
Conductor material
-
Copper
-
Nominal cross section conductor
-
1.5
-
Material core insulation
-
Polyamide (PA)
-
Screen
-
FALSE
-
Nominal voltage U0
-
250
-
AWG size
-
Other
-
Core identification according to HD 308 S2
-
FALSE
-
Flame retardant according to IEC 60332-1-2
-
TRUE
-
Flame retardant according to IEC 60332-3-22 (Cat A)
-
FALSE
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
-
TRUE
-
Flame retardant according to IEC 60332-3-24 (Cat C)
-
TRUE
-
Flame retardant according to IEC 60332-3-23 (Cat B)
-
TRUE
-
Halogen free according to EN IEC 60754-1
-
TRUE
-
Flame retardant according to IEC 60332-3-25 (Cat D)
-
TRUE
-
Number of cores
-
3
-
Core identification
-
Colour
-
Suspension element
-
Other
-
Conductor category
-
Class 5 = flexible
-
Cable geometry
-
Round
