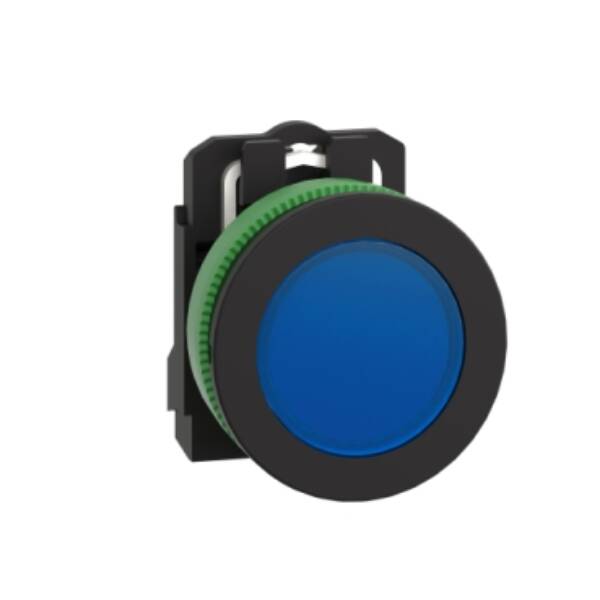

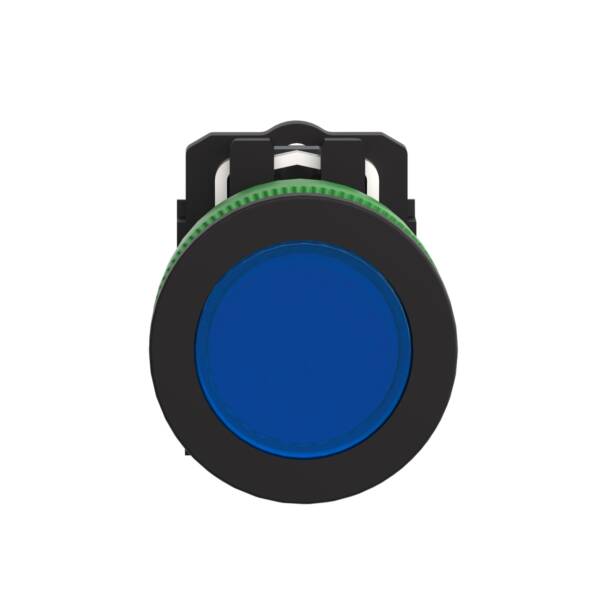

This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. Customized marking option through web customization tool is available in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and blue. The bezel and the fixing collar is plastic. The weight of this pilot light is 38 grams, height is 42 mm and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. Complies with directives such as RoHS, WEEE

Brand

Schneider Electric

Range

Harmony XB5

Part No

XB5FVB6

Weight (kg)

0.04 kg

Type

Harmony XB5

With light source

TRUE

Number of indicator lights

1

Colour lens

Blue

Colour front ring

Black

Rated operating voltage Ue

24 V

Type of electric connection

Screw connection

Voltage type

AC/DC

Hole diameter

30.5

Material front ring

Plastic

Type of lamp socket

LED

Construction type lens

Round

With front ring

TRUE

Degree of protection (IP)

IP66

Type of lens

Flat

Degree of protection (NEMA)

13
