pendant control station XAC-A - 2 pushbuttons 1 Emergency stop - Schneider Electric - XACA2913
pendant control station XAC-A - 2 pushbuttons 1 Emergency stop - Schneider Electric - XACA2913

XACA2913

pendant control station XAC-A - 2 pushbuttons 1 Emergency stop - Schneider Electric - XACA2913

Control

List Price £116.99 +VAT

Our Price £87.74 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

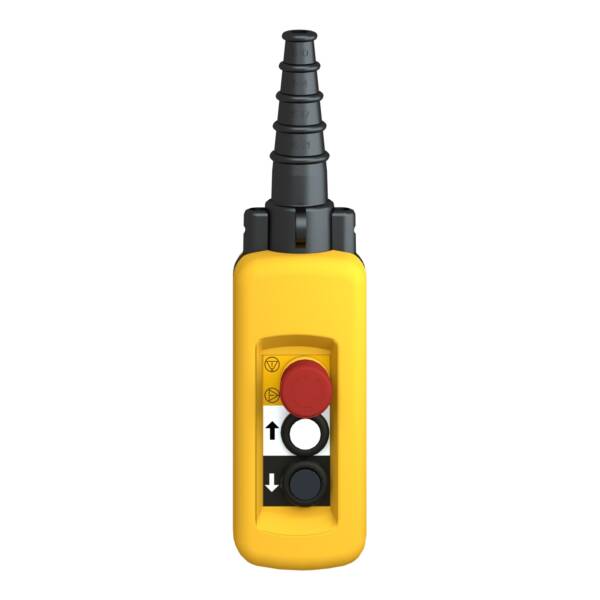

This Harmony XAC, is a complete ready to use pendant station for control of two-speed motors. It has 2 push buttons mechanically interlocked + 1 slow stop push button diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. Designed for mechanical handling, these highly robust pendant control stations are not only simple and intuitive, but also very comfortable for the operator to use. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a yellow polypropylène double insulated enclosure. This control station is ideal for hoists, travelling cranes applications. This robust pendant control station complies with the safety requirements of IEC standards.
Brand
Schneider Electric
Range
Harmony-XAC
Part No
XACA2913
Weight (kg)
0.70 kg
Type
Harmony-XAC
Type of executable motions
Lift
Width
80
Material housing
Plastic
Suitable for emergency stop
TRUE
Depth
107
Number of speeds
2
Material quality housing
Other
Height
314
Degree of protection (IP)
IP65
Rated operation current Ie at AC-15, 600 V
1.2
Colour housing cover
Yellow
Number of command positions
2
Degree of protection (NEMA)
13

Datasheet for XACA2913 - pendant control station XAC-A - 2 pushbuttons 1 Emergency stop - Schneider Electric - XACA2913
