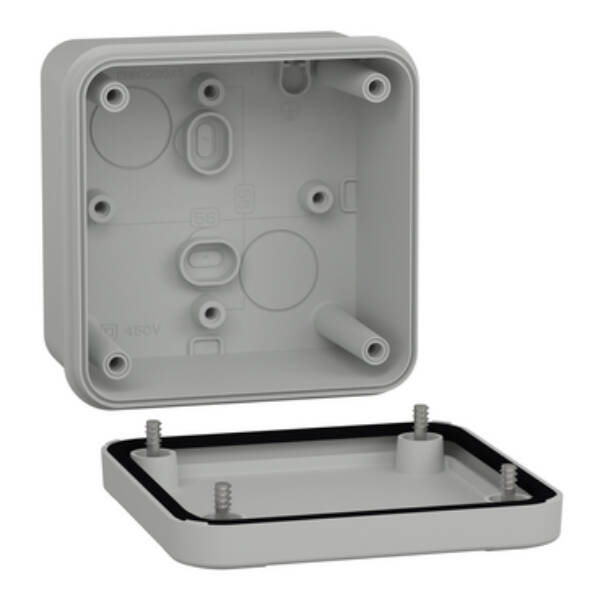

PC box IP66 IK08 RAL7035 Int.H80W80D65 Ext.H89W89D51 opaque PC cover H10 - Schneider Electric - NSYTBP885

PC box IP66 IK08 RAL7035 Int.H80W80D65 Ext.H89W89D51 opaque PC cover H10 - Schneider Electric - NSYTBP885

NSYTBP885

PC box IP66 IK08 RAL7035 Int.H80W80D65 Ext.H89W89D51 opaque PC cover H10 - Schneider Electric - NSYTBP885

Enclosures

~~List Price £9.45 +VAT~~

Our Price £7.09 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

Thalassa TBP industrial PC box with opaque PC cover H10. Int is 80 x 80 x 65 mm. Ext is 89 x 89 x 51 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Brand: Schneider Electric
Range: PanelSeT TBP
Part No: NSYTBP885
Weight (kg): 0.11 kg
Type: Thalassa TBP
Surface protection: Untreated
With mounting plate: FALSE
Type of cover: Cover
Extension possible: FALSE
RAL-number: 7035
Height: 89
Type of door: None
Internal depth: 47
Degree of protection (IP): IP66
Transparent cover/door: FALSE
Cover model: Closed
Colour: Grey
Width: 89
Circuit integrity: None
Suitable for outdoor use: TRUE
Material housing: Plastic
Mounting method: Surface mounted (plaster)
Protection class: II
Depth: 54
With lock: FALSE
Impact strength: IK08
Degree of protection (NEMA): 4X

Datasheet for NSYTBP885 - PC box IP66 IK08 RAL7035 Int.H80W80D65 Ext.H89W89D51 opaque PC cover H10 - Schneider Electric - NSYTBP885

Download
