PC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W191D128 Transp.cover H20 - Schneider Electric - NSYTBP241910T
PC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W191D128 Transp.cover H20 - Schneider Electric - NSYTBP241910T

NSYTBP241910T

PC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W191D128 Transp.cover H20 - Schneider Electric - NSYTBP241910T

Enclosures

List Price £42.17 +VAT

Our Price £31.63 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

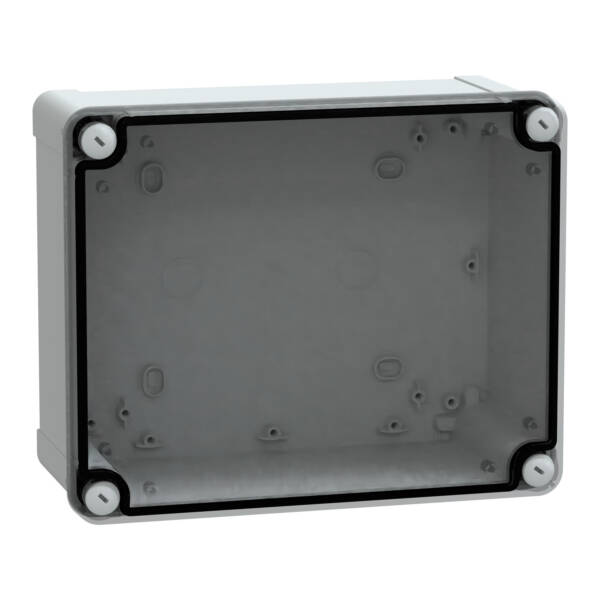

"This TBP is a wall-mounted box made of polycarbonate" "It is designed for multi-purpose applications and can be used indoor or outdoor" "The box has a grey (RAL 7035) body and a low transparent cover" "The enclosure has a nominal height, width, and depth of 241 mm, 194 mm, and 107 mm, respectively" "The internal dimensions of the box are 225 mm x 175 mm x 100 mm" "The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP" "The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions" "It is also resistant to fire up to 960°C in accordance with IEC 62208 standard" "The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262)" "It can be stored in ambient air temperatures ranging from -15 to 60°C and used in ambient air temperature ranging from -25 to 80 °C without affecting its performance" "The product is UL certified"
Brand
Schneider Electric
Range
PanelSeT TBP
Part No
NSYTBP241910T
Weight (kg)
0.78 kg
Type
Thalassa TBP
Surface protection
Untreated
With mounting plate
FALSE
Type of cover
Cover
Extension possible
FALSE
RAL-number
7035
Height
241
Type of door
None
Transparent cover/door
TRUE
Degree of protection (IP)
IP66
Internal depth
100
Cover model
Closed
Colour
Grey
Width
194
Circuit integrity
None
Suitable for outdoor use
TRUE
Material housing
Plastic
Mounting method
Surface mounted (plaster)
Protection class
II
Depth
107
With lock
FALSE
Impact strength
IK08
Degree of protection (NEMA)
4X

Datasheet for NSYTBP241910T - PC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W191D128 Transp.cover H20 - Schneider Electric - NSYTBP241910T
