NSYTBP191610HT
NSYTBP191610HT
PC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40 - Schneider Electric - NSYTBP191610HT
Enclosures
List Price £38.15
+VAT
Our Price £28.61
+VAT
SAVE 26% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Product description
Specifications
Downloads

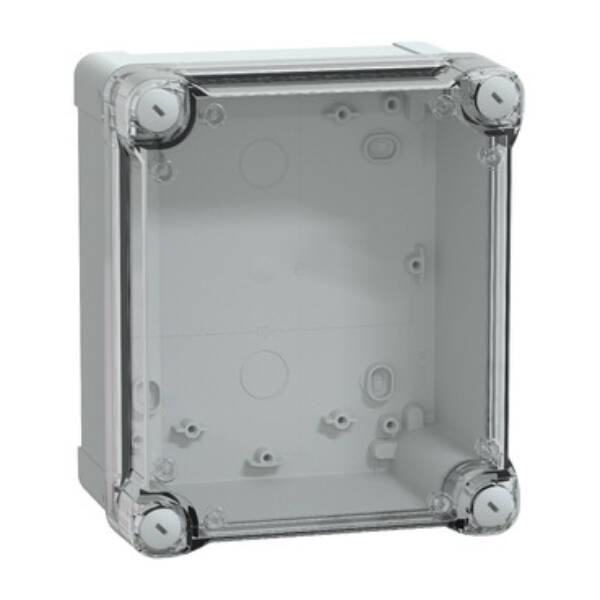

This TBP is a wall-mounted box made of polycarbonate that is suitable for multi-purpose applications The box has a height, width, and depth of 192 mm, 164 mm, and 105 mm, respectively The internal dimensions of the box are 175 mm x 150 mm x 100 mm The box is made of PC (polycarbonate), which offers resistance to impact, corrosion and low and high temperatures It can be installed in outdoor The box comes in a grey (RAL 7035) and with high transparent cover The cover is fixed with captive flat screws located outside sealed area and easily openable with a flat screwdriver The box can be used for junction, shunting, protection of electronical cards, push button support, industrial automation and other applications It is also resistant to fire up to 960°C in accordance with IEC 62208 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262) It can be used in ambient air temperature ranging from -25 to 80°C without affecting its performance The product is UL certified and is class II insulated
Brand
Schneider Electric
Range
PanelSeT TBP
Part No
NSYTBP191610HT
Weight (kg)
0.60 kg
Type
Thalassa TBP
Datasheet for NSYTBP191610HT - PC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40 - Schneider Electric - NSYTBP191610HT
Download
