PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40 - Schneider Electric - NSYTBP191210HT
PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40 - Schneider Electric - NSYTBP191210HT

NSYTBP191210HT

PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40 - Schneider Electric - NSYTBP191210HT

Enclosures

List Price £30.75 +VAT

Our Price £23.06 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

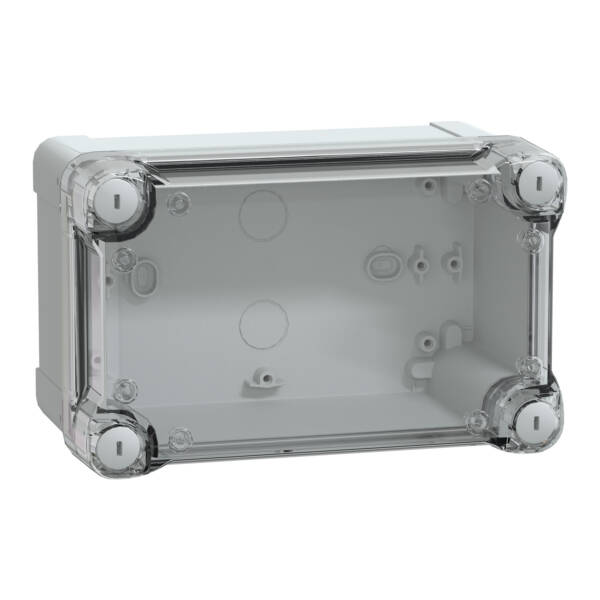

This TBP is a wall-mounted box made of polycarbonate that is suitable for multi-purpose applications The box has a height, width, and depth of 192 mm, 121 mm, and 105 mm, respectively The internal dimensions of the box are 175 mm x 105 mm x 100 mm The box is made of PC (polycarbonate), which offers resistance to impact, corrosion and low and high temperatures It can be installed in outdoor The box comes in a grey (RAL 7035) and with high transparent cover The cover is fixed with captive flat screws located outside sealed area and easily openable with a flat screwdriver The box can be used for junction, shunting, protection of electronical cards, push button support, industrial automation and other applications It is also resistant to fire up to 960°C in accordance with IEC 62208 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262) It can be used in ambient air temperature ranging from -25 to 80°C without affecting its performance The product is UL certified and is class II insulated This electrical box is sold in a set of 2
Brand
Schneider Electric
Range
PanelSeT TBP
Part No
NSYTBP191210HT
Weight (kg)
0.49 kg
Type
Thalassa TBP
Surface protection
Untreated
With mounting plate
FALSE
Type of cover
Cover
Extension possible
FALSE
RAL-number
7035
Type of door
None
Height
192
Internal depth
100
Degree of protection (IP)
IP66
Transparent cover/door
TRUE
Cover model
Closed
Colour
Grey
Width
121
Circuit integrity
None
Suitable for outdoor use
TRUE
Material housing
Plastic
Mounting method
Surface mounted (plaster)
Protection class
II
Depth
105
With lock
FALSE
Impact strength
IK08
Degree of protection (NEMA)
4X

Datasheet for NSYTBP191210HT - PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40 - Schneider Electric - NSYTBP191210HT
