PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20 - Schneider Electric - NSYTBP16128T

PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20 - Schneider Electric - NSYTBP16128T

NSYTBP16128T

PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20 - Schneider Electric - NSYTBP16128T

Enclosures

~~List Price £17.77 +VAT~~

Our Price £13.33 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

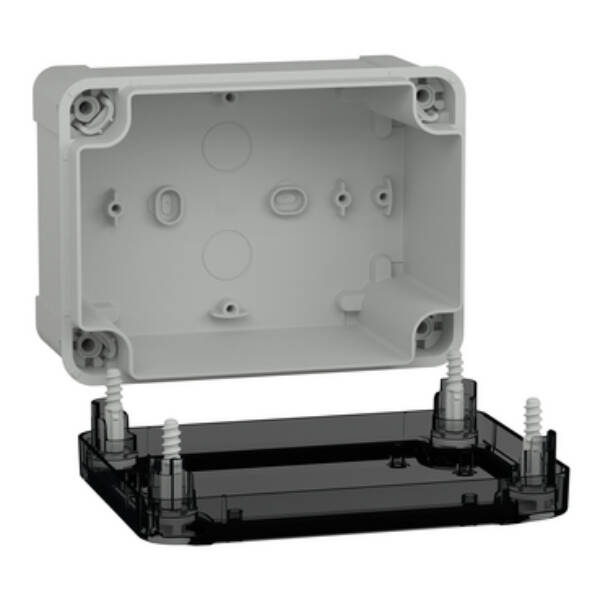

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Brand: Schneider Electric
Range: PanelSeT TBP
Part No: NSYTBP16128T
Weight (kg): 0.32 kg
Type: Thalassa TBP
Surface protection: Untreated
With mounting plate: FALSE
Type of cover: Cover
Extension possible: FALSE
RAL-number: 7035
Height: 164
Type of door: None
Transparent cover/door: TRUE
Internal depth: 80
Degree of protection (IP): IP66
Cover model: Closed
Colour: Grey
Circuit integrity: None
Width: 121
Suitable for outdoor use: TRUE
Material housing: Plastic
Mounting method: Surface mounted (plaster)
Protection class: II
Depth: 87
With lock: FALSE
Impact strength: IK08
Degree of protection (NEMA): 4X

Datasheet for NSYTBP16128T - PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20 - Schneider Electric - NSYTBP16128T
