"PanelSeT SM compact enclosure with mounting plate - 1800x800x300 mm" - Schneider Electric - NSYSM18830P
"PanelSeT SM compact enclosure with mounting plate - 1800x800x300 mm" - Schneider Electric - NSYSM18830P

NSYSM18830P

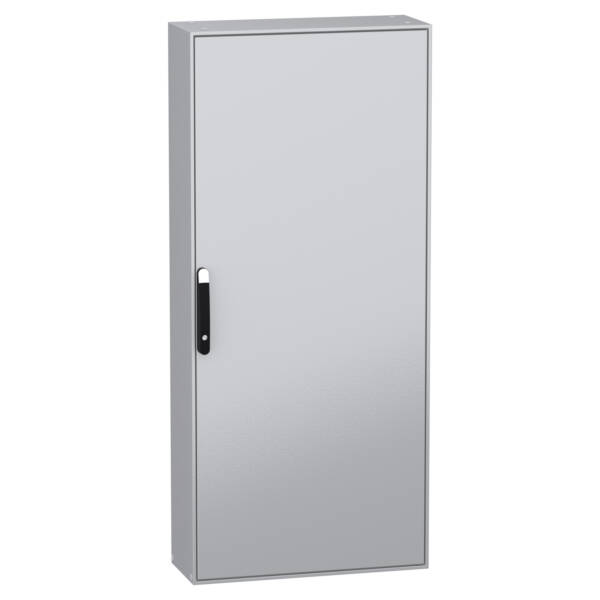

Spacial SM compact enclosure with mounting plate - 1800x800x300 mm - Schneider Electric - NSYSM18830P

Enclosures

List Price £734.82 +VAT

Our Price £551.12 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"PanelSeT SM is a multi-purpose steel compact floor-standing enclosure designed for use in harsh environments" "It has a nominal height, width and depth of 1800mm, 800mm and 300mm respectively" "The enclosure is made of galvanised steel mounting plate, sheet steel body and door, and a zamak hinge" "It is certified by DNV, BV and UL, and comes in grey colour (RAL7035) with an epoxy-polyester powder surface finish and a black handle (RAL9005)" "The enclosure consists of a body, one cable gland plate, four mounting plate brackets, one mounting plate, one plain door and a locking system with handle" "The door can be opened up to 120° in either direction, allowing easy access to the equipment inside" "It has a four-point lock with a handle with 5mm double-bar insert" "The door and the mounting plate can be removed for maintenance purposes" "The net weight of the enclosure is 95kg"
Brand
Schneider Electric
Range
PanelSeT SM
Part No
NSYSM18830P
Weight (kg)
95.00 kg
Type
Spacial SM
With mounting plate
TRUE
With glazed door
FALSE
Wall fastening possible
TRUE
Suitable for metrical mounting
TRUE
RAL-number
7035
Tackable
FALSE
Height
1800
Degree of protection (IP)
IP55
Pitched roof
FALSE
Colour
Grey
Width
800
Surface finishing
Powder coating
Material
Steel
Number of doors
1
Suitable for outdoor set-up
FALSE
Number of locks
1
Material quality
Other
Depth
300
Wall build in
FALSE
Mounting plate depth-adjustable
FALSE
Impact strength
IK10
With ventilation door
FALSE
EMC-version
FALSE
Degree of protection (NEMA)
12
Pole fastening
FALSE
With backside door
FALSE
Floor installation possible
TRUE

Datasheet for NSYSM18830P - "PanelSeT SM compact enclosure with mounting plate - 1800x800x300 mm" - Schneider Electric - NSYSM18830P
