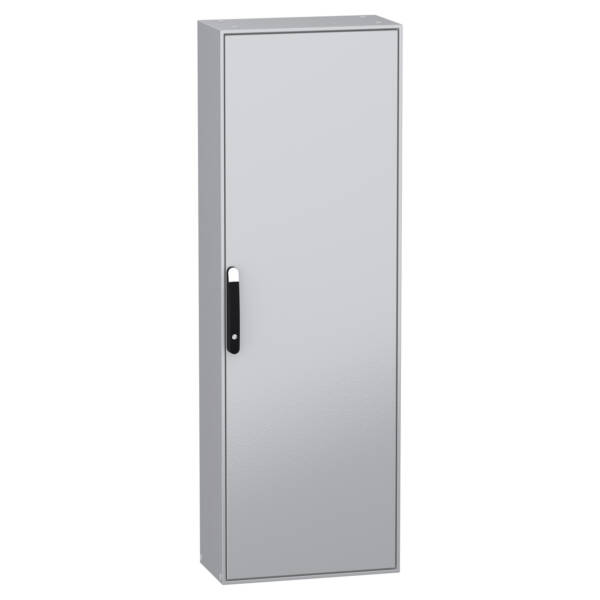

"PanelSeT SM is a multi-purpose steel floor-standing enclosure designed for use in harsh environments" "It has a nominal height, width and depth of 1800mm, 600mm and 300mm respectively" "The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005)" "The enclosure consists of a body, one cable gland plate, four mounting plate brackets, one mounting plate, one plain door and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "The enclosure has a four-point lock with a handle with 5mm double-bar insert" "The door, mounting plate and mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 90kg" "It is certified by DNV, BV and UL and conforms to IEC 62208, IK10 (IEC62262) and IP55 (IEC60529)"

Brand

Schneider Electric

Range

PanelSeT SM

Part No

NSYSM18630P

Weight (kg)

84.00 kg

Type

Spacial SM

Couplable

FALSE

With mounting plate

TRUE

Freestanding

FALSE

With glazed door

FALSE

With cover

FALSE

Suitable for metrical mounting

TRUE

RAL-number

7035

Transparent cover

FALSE

Height

1800

Degree of protection (IP)

IP55

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Grey

Width

600

Intermediate mounting

FALSE

Surface finishing

Powder coating

Material

Steel

Number of doors

1

Corner model

FALSE

Suitable for outdoor set-up

FALSE

Number of locks

1

Material quality

Other

Suitable for wall mounting

FALSE

Suitable for wall built-in

FALSE

Depth

300

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

2502

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

13

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

4900

Max. permissible load of the door(s) according to IEC 62208

588
