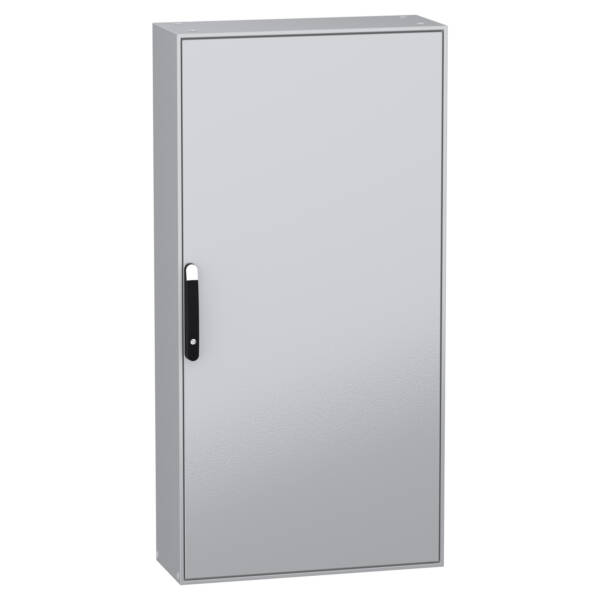

"PanelSeT SM compact enclosure with mounting plate - 1600x800x300 mm" - Schneider Electric - NSYSM16830P

NSYSM16830P

"PanelSeT SM compact enclosure with mounting plate - 1600x800x300 mm" - Schneider Electric - NSYSM16830P

Enclosures

~~List Price £758.52 +VAT~~

Our Price £568.89 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

PanelSeT SM monobloc compact steel enclosure with plain front door. 1600 x 800 x 300 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

Brand: Schneider Electric
Range: PanelSeT SM
Part No: NSYSM16830P
Weight (kg): 94.00 kg
Type: Spacial SM
Couplable: FALSE
With mounting plate: TRUE
Freestanding: FALSE
With glazed door: FALSE
Suitable for metrical mounting: TRUE
With cover: FALSE
RAL-number: 7035
Transparent cover: FALSE
Height: 1600
Degree of protection (IP): IP55
Pitched roof: FALSE
Floor standing wall model: TRUE
Colour: Grey
Width: 800
Intermediate mounting: FALSE
Surface finishing: Powder coating
Number of doors: 1
Material: Steel
Corner model: FALSE
Number of locks: 1
Suitable for outdoor set-up: FALSE
Material quality: Other
Suitable for wall mounting: FALSE
Suitable for wall built-in: FALSE
Depth: 300
Pre-stamping: FALSE
Max. permissible load of the mounting plate according to IEC 62208: 3090
With door: TRUE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 13
With rear door: FALSE
Pole fastening: FALSE
Max. permissible load of the enclosure according to IEC 62208: 4900
Max. permissible load of the door(s) according to IEC 62208: 588

Datasheet for NSYSM16830P - "PanelSeT SM compact enclosure with mounting plate - 1600x800x300 mm" - Schneider Electric - NSYSM16830P

Download
