NSYSM16630P

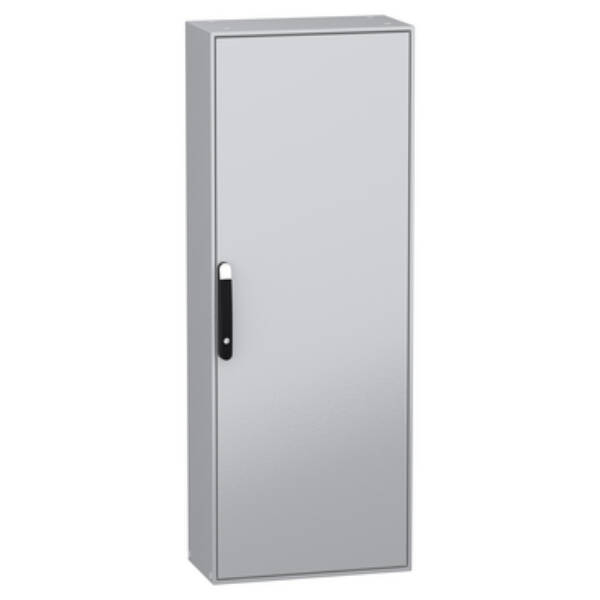

Spacial SM compact enclosure with mounting plate - 1600x600x300 mm - Schneider Electric - NSYSM16630P

Enclosures

~~List Price £656.30 +VAT~~

Our Price £492.23 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"PanelSeT SM steel compact floor-standing enclosure for a multi-purpose application" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 1600mm, 600mm and 300mm respectively" "The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005)" "The enclosure consists of a body, one cable gland plate, one plain door, four mounting plate brackets, one mounting plate and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "The enclosure has a four-point lock with a handle with 5mm double-bar insert" "The door and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 85kg" "The mounting plate is made of galvanised steel"

Brand: Schneider Electric
Range: PanelSeT SM
Part No: NSYSM16630P
Weight (kg): 85.00 kg
Type: Spacial SM
