"PanelSeT SM compact enclosure with glazed door - 2000x800x300 mm" - Schneider Electric - NSYSM20830T

NSYSM20830T

"PanelSeT SM compact enclosure with glazed door - 2000x800x300 mm" - Schneider Electric - NSYSM20830T

Enclosures

~~List Price £1,356.91 +VAT~~

Our Price £1,017.68 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

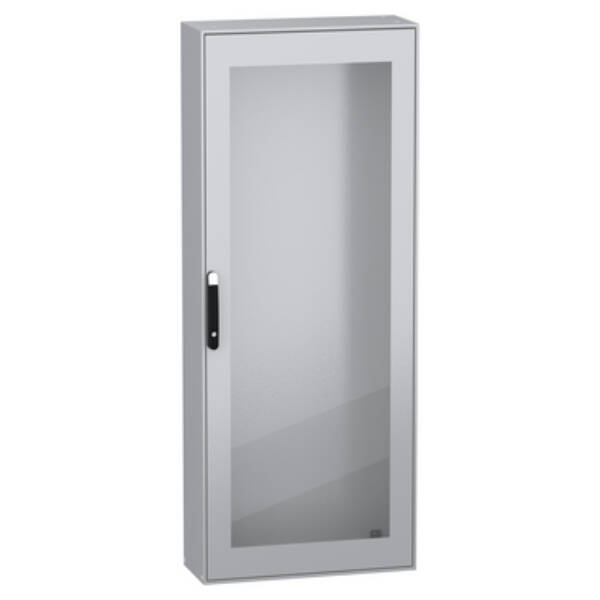

PanelSeT SM monobloc compact steel enclosure with glazed door. 2000 x 800 x 300 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.

Brand: Schneider Electric
Range: PanelSeT SM
Part No: NSYSM20830T
Weight (kg): 74.00 kg
Type: Spacial SM
Couplable: FALSE
With mounting plate: FALSE
Freestanding: TRUE
With glazed door: TRUE
Suitable for metrical mounting: TRUE
With cover: FALSE
RAL-number: 7035
Transparent cover: FALSE
Height: 2000
Degree of protection (IP): IP55
Pitched roof: FALSE
Floor standing wall model: TRUE
Colour: Grey
Width: 800
Intermediate mounting: FALSE
Surface finishing: Powder coating
Material: Steel
Number of doors: 1
Corner model: FALSE
Suitable for outdoor set-up: FALSE
Number of locks: 1
Material quality: Other
Suitable for wall mounting: FALSE
Depth: 300
Suitable for wall built-in: FALSE
Pre-stamping: FALSE
Max. permissible load of the mounting plate according to IEC 62208: 3914
With door: TRUE
Mounting plate depth-adjustable: FALSE
Impact strength: IK08
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 13
With rear door: FALSE
Pole fastening: FALSE
Max. permissible load of the enclosure according to IEC 62208: 4900
Max. permissible load of the door(s) according to IEC 62208: 588

Datasheet for NSYSM20830T - "PanelSeT SM compact enclosure with glazed door - 2000x800x300 mm" - Schneider Electric - NSYSM20830T

Download
