NSYSDF1610

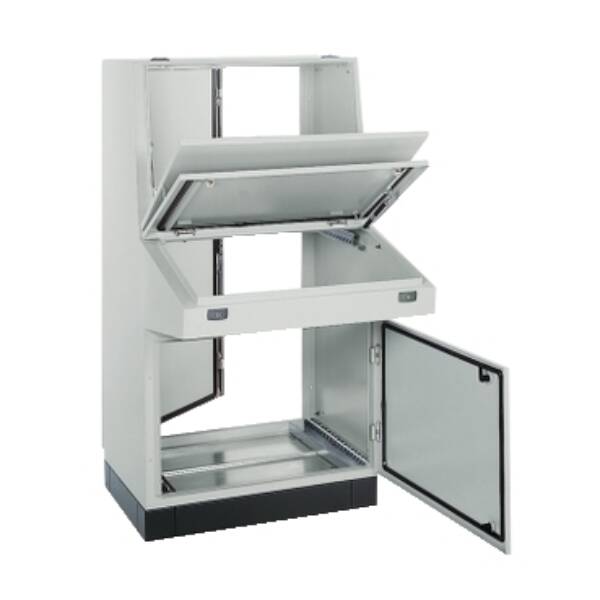

Spacial SD Control desk with console - H1400xW1600xD1045 - IP55 - Schneider Electric - NSYSDF1610

Enclosures

~~List Price £2,801.78 +VAT~~

Our Price £2,101.34 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"PanelSeT SD floor-standing control desk with console and desk 1400mm (height), 1600mm (width) and 1045mm (depth)" "Single piece structure folded and welded body made from 1,5mm steel" The enclosure is made up of 1 structure, 4 adjustment rails, 1 cable gland plate, 2 pneumatic stays for desk lid, 1 front console door, 1 desk lid, 2 mechanical stays for front console door, 6 locks for front door, 1 handle lock for rear door, 2 front doors and 2 rear doors Easy removable and reversible front and rear doors, opening to 120° Locking by handle lock, 5mm double bar and 2 points lock, 3mm double-bar Mounting plate is not included One entry cable gland plate, with polyurethane gasket Anti-corrosion protection is ensured by an epoxy-polyester powder coating Color of product is grey (RAL-7035) Ingress protection rating IP55 conforming to IEC 60529 Mechanical protection rating IK10 conforming to IEC 62262 "This product is qualified as a green premium, with minimal use of hazardous substances"

Brand: Schneider Electric
Range: PanelSeT SD
Part No: NSYSDF1610
Weight (kg): 132.00 kg
Type: Spacial SD
