NSYSD10R

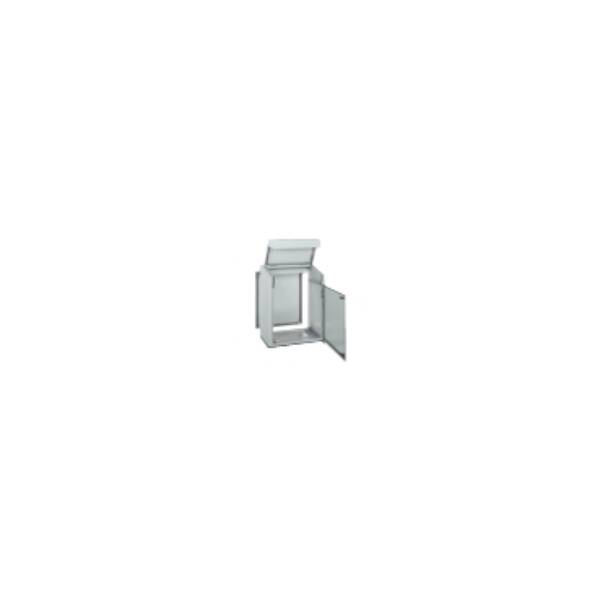

Spacial SD Compact control desk with rear panel - H1000xW1000xD597 - IP55 - Schneider Electric - NSYSD10R

Enclosures

~~List Price £1,433.65 +VAT~~

Our Price £1,075.24 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"PanelSeT SD floor-standing monobloc control desk with rear panel 1000mm (height), 1000mm (width) and 597mm (depth)" "Single piece structure folded and welded body made from 1,5mm steel" The enclosure is made up of 1 structure, 2 locks for door, 4 adjustment rails, 1 cable gland plate, 2 pneumatic stays for desk lid, 2 doors, 1 rear panel and 5 top plates for on top of control desk Easy removable and reversible door opening to 120° Removable rear panel enables the installation of two mounting plates back-to-back and ensures full accessibility from the front and the rear Locking by 2 points lock, 3mm double-bar Mounting plate is not included One entry cable gland plate, with polyurethane gasket Anti-corrosion protection is ensured by an epoxy-polyester powder coating Color of product is grey (RAL-7035) Ingress protection rating IP55 conforming to IEC 60529 Mechanical protection rating IK10 conforming to IEC 62262 "This product is qualified as a green premium, with minimal use of hazardous substances"

Brand: Schneider Electric
Range: PanelSeT SD
Part No: NSYSD10R
Weight (kg): 72.00 kg
Type: Spacial SD
