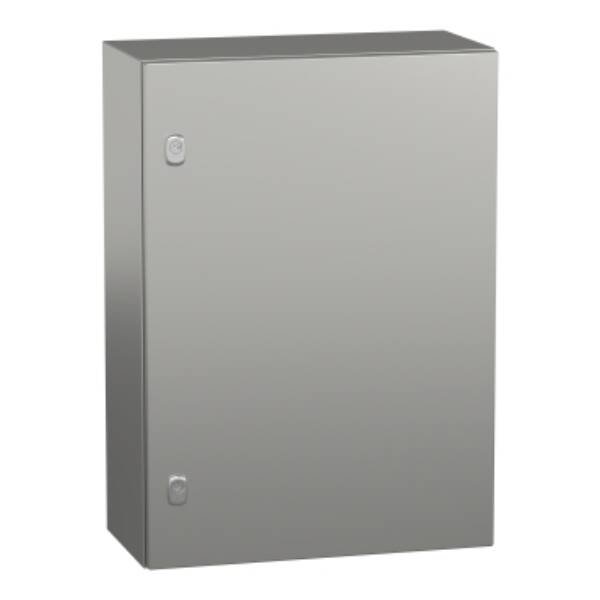

"PanelSet S3X stainless 316L, Scotch Brite® finish, H700xW500xD250 mm." - Schneider Electric - NSYS3X7525H

"PanelSet S3X stainless 316L, Scotch Brite® finish, H700xW500xD250 mm." - Schneider Electric - NSYS3X7525H

NSYS3X7525H

"PanelSet S3X stainless 316L, Scotch Brite® finish, H700xW500xD250 mm." - Schneider Electric - NSYS3X7525H

Enclosures

~~List Price £1,317.79 +VAT~~

Our Price £988.34 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

"PanelSet S3X stainless steel 316L wall-mounting enclosure is a multi-purpose enclosure designed for use in harsh environments" "It is corrosion-resistant and has an IK10 (IEC 62262) rating for high impact resistance and an IP66 (IEC 60529) rating for dust and water resistance" "The enclosure has a nominal height, width and depth of 700mm, 500mm and 250mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish and consists of a body, a plain door and two locks" "The door can be opened up to 120° and the opening side can be reversed" "The door has two lock points with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 17,44kg" "It is certified by UL 508 type A and CAN/CSA 22, and is compliant with IEC 62208 standards"

Brand: Schneider Electric
Part No: NSYS3X7525H
Weight (kg): 17.64 kg
Couplable: FALSE
With mounting plate: FALSE
Freestanding: FALSE
With glazed door: FALSE
Suitable for metrical mounting: TRUE
With cover: FALSE
RAL-number: 7035
Transparent cover: FALSE
Height: 700
Degree of protection (IP): IP55
Pitched roof: FALSE
Floor standing wall model: FALSE
Colour: Stainless steel
Width: 500
Intermediate mounting: FALSE
Surface finishing: Other
Material: Stainless steel
Number of doors: 1
Corner model: FALSE
Number of locks: 1
Suitable for outdoor set-up: FALSE
Suitable for wall mounting: TRUE
Material quality: Stainless steel 316 (V4A)
Depth: 250
Suitable for wall built-in: FALSE
Pre-stamping: FALSE
Max. permissible load of the mounting plate according to IEC 62208: 250
With door: TRUE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
With rear door: FALSE
Pole fastening: FALSE
Max. permissible load of the enclosure according to IEC 62208: 50
Max. permissible load of the door(s) according to IEC 62208: 50

Datasheet for NSYS3X7525H - "PanelSet S3X stainless 316L, Scotch Brite® finish, H700xW500xD250 mm." - Schneider Electric - NSYS3X7525H

Download
