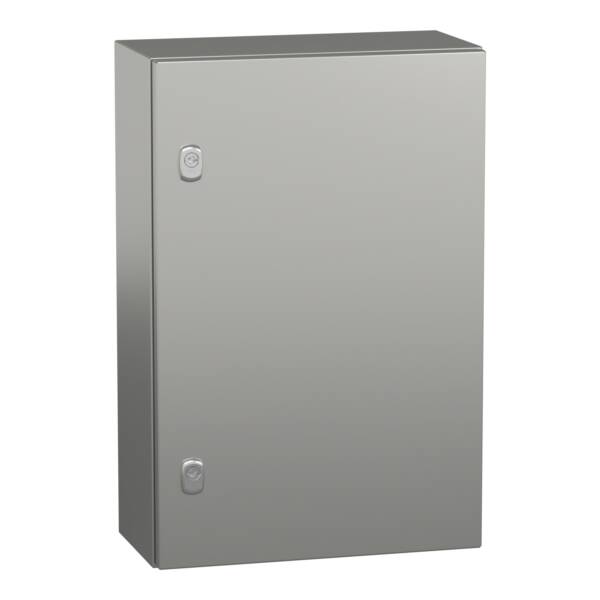

"PanelSet S3X stainless 316L, Scotch Brite® finish, H600xW400xD200 mm." - Schneider Electric - NSYS3X6420H

"PanelSet S3X stainless 316L, Scotch Brite® finish, H600xW400xD200 mm." - Schneider Electric - NSYS3X6420H

NSYS3X6420H

SPACIAL S3X stainless 316L, Scotch Brite® finish, H600xW400xD200 mm. - Schneider Electric - NSYS3X6420H

Enclosures

~~List Price £1,174.96 +VAT~~

Our Price £881.22 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

"PanelSet S3X is a stainless steel 316L wall-mounting enclosure designed for multi-purpose applications and resistance to corrosion" "It has a nominal height, width and depth of 600mm, 400mm and 200mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish and is designed to withstand high impact with an IK10 (IEC62262) rating and high resistance to dust and water with an IP66 (IEC60529) rating" "The enclosure consists of a body, a plain door, two locks and two perforated vertical profiles" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a two lock points lock with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 9,52kg" "It has product certifications from UL 508 type A and CAN/CSA 22"

Brand: Schneider Electric
Part No: NSYS3X6420H
Weight (kg): 9.52 kg
With mounting plate: FALSE
With glazed door: FALSE
Wall fastening possible: TRUE
Suitable for metrical mounting: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 600
Degree of protection (IP): IP55
Pitched roof: FALSE
Colour: Stainless steel
Width: 400
Surface finishing: Other
Material: Stainless steel
Number of doors: 1
Suitable for outdoor set-up: FALSE
Number of locks: 1
Material quality: Stainless steel V4A
Depth: 200
Wall build in: FALSE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
Pole fastening: FALSE
With backside door: FALSE
Floor installation possible: FALSE

Datasheet for NSYS3X6420H - "PanelSet S3X stainless 316L, Scotch Brite® finish, H600xW400xD200 mm." - Schneider Electric - NSYS3X6420H

Download
