"PanelSet S3X stainless 316L, Scotch Brite® finish, H300xW250xD150 mm." - Schneider Electric - NSYS3X302515H

"PanelSet S3X stainless 316L, Scotch Brite® finish, H300xW250xD150 mm." - Schneider Electric - NSYS3X302515H

NSYS3X302515H

"PanelSet S3X stainless 316L, Scotch Brite® finish, H300xW250xD150 mm." - Schneider Electric - NSYS3X302515H

Enclosures

~~List Price £716.65 +VAT~~

Our Price £537.49 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

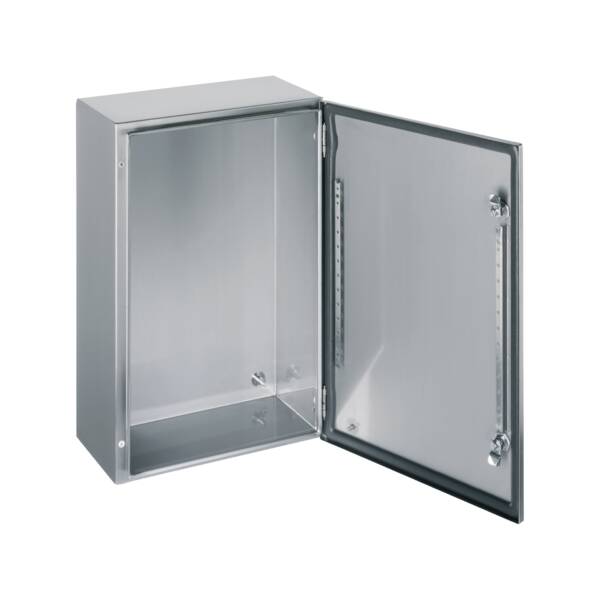

"PanelSet S3X is a stainless steel 316L wall-mounting enclosure, designed for multi-purpose applications and resistant to corrosion" "It is certified by CAN/CSA 22 and UL 508 type A, making it suitable for use in harsh environments" "It is IK10 (IEC 62262) rated and has an IP66 (IEC 60529) rating, providing high resistance to dust and water" "The enclosure has a nominal height, width and depth of 300mm, 250mm and 150mm respectively" "It has a Scotch-Brite® brushed surface finish, and consists of a body, one plain door and one lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a 3mm double-bar lock for added security" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 3,574kg"

Brand: Schneider Electric
Part No: NSYS3X302515H
Weight (kg): 3.57 kg
Couplable: FALSE
With mounting plate: FALSE
Freestanding: FALSE
With glazed door: FALSE
Suitable for metrical mounting: TRUE
With cover: FALSE
RAL-number: 7035
Transparent cover: FALSE
Height: 300
Degree of protection (IP): IP55
Pitched roof: FALSE
Floor standing wall model: FALSE
Colour: Stainless steel
Width: 250
Intermediate mounting: FALSE
Surface finishing: Other
Number of doors: 1
Material: Stainless steel
Number of locks: 1
Corner model: FALSE
Suitable for outdoor set-up: FALSE
Suitable for wall mounting: TRUE
Material quality: Stainless steel 316 (V4A)
Depth: 150
Suitable for wall built-in: FALSE
Pre-stamping: FALSE
Max. permissible load of the mounting plate according to IEC 62208: 250
With door: TRUE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
Pole fastening: FALSE
With rear door: FALSE
Max. permissible load of the enclosure according to IEC 62208: 50
Max. permissible load of the door(s) according to IEC 62208: 50

Datasheet for NSYS3X302515H - "PanelSet S3X stainless 316L, Scotch Brite® finish, H300xW250xD150 mm." - Schneider Electric - NSYS3X302515H

Download
