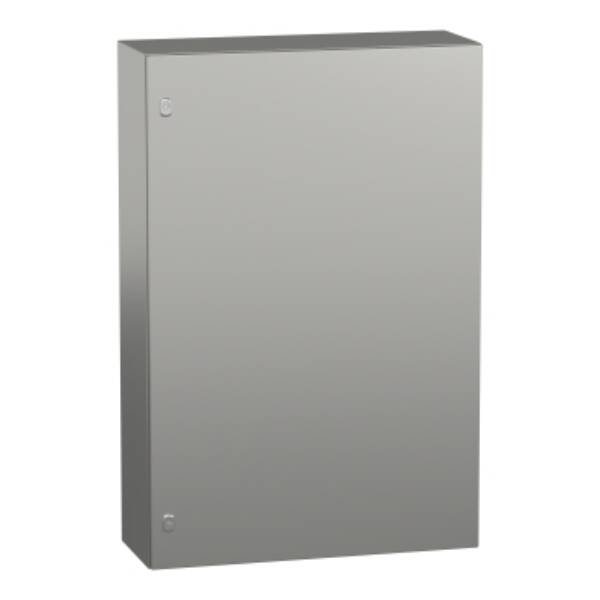

"PanelSet S3X is a stainless steel 316L wall-mounting enclosure for a multi-purpose application" "It has a nominal height, width and depth of 1200mm, 800mm and 300mm respectively" "The enclosure is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529)" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and two locks" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a two lock points lock with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 44kg and it is certified with UL 508 type A and CAN/CSA 22 standards"

Brand

Schneider Electric

Part No

NSYS3X12830H

Weight (kg)

44.00 kg

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

Suitable for metrical mounting

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1200

Degree of protection (IP)

IP55

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Stainless steel

Width

800

Intermediate mounting

FALSE

Surface finishing

Other

Material

Stainless steel

Number of doors

1

Corner model

FALSE

Number of locks

1

Suitable for outdoor set-up

FALSE

Suitable for wall mounting

TRUE

Material quality

Stainless steel 316 (V4A)

Suitable for wall built-in

FALSE

Depth

300

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

250

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

12

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

50

Max. permissible load of the door(s) according to IEC 62208

50
