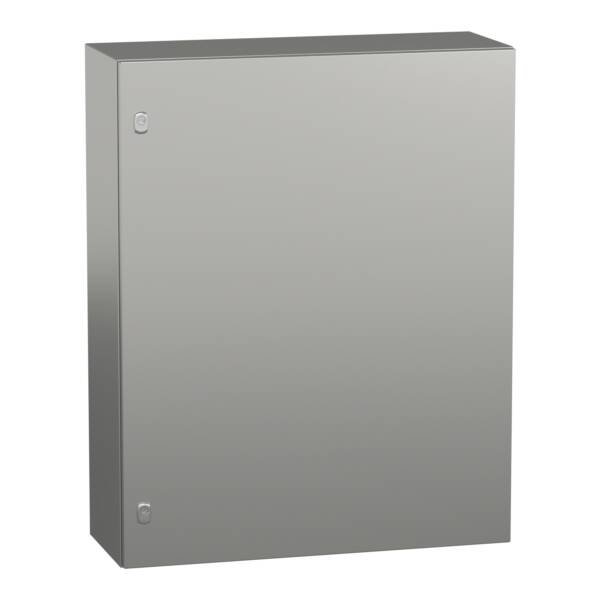

"PanelSet S3X is a multi-purpose wall-mounting enclosure designed for harsh environments" "It is made of stainless steel 316L with a Scotch-Brite® brushed surface finish and a chromium-plated lock" "The enclosure has a nominal height, width and depth of 1000mm, 800mm and 300mm respectively, and has a net weight of 37,6kg" "The device composition includes one body, one reinforcement frame drilled door, one door and two locks" "The door is plain and opens up to 120°, allowing easy access to the equipment inside" "It has two lock points with a 3mm double-bar insert and can be reversed for convenience" "The enclosure is certified by CAN/CSA 22 and UL 508 Type A, and has an IK10 (IEC62262) and IP66 rating (IEC60529) for high impact resistance and dust and water protection" "It is also designed for specific hygiene and corrosive environments, and the door can be removed for maintenance purposes"

Brand

Schneider Electric

Part No

NSYS3X10830H

Weight (kg)

37.60 kg

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

Suitable for metrical mounting

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1000

Degree of protection (IP)

IP55

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Stainless steel

Width

800

Intermediate mounting

FALSE

Surface finishing

Other

Material

Stainless steel

Number of doors

1

Corner model

FALSE

Number of locks

1

Suitable for outdoor set-up

FALSE

Suitable for wall mounting

TRUE

Material quality

Stainless steel 316 (V4A)

Suitable for wall built-in

FALSE

Depth

300

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

250

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

12

Pole fastening

FALSE

With rear door

FALSE

Max. permissible load of the enclosure according to IEC 62208

50

Max. permissible load of the door(s) according to IEC 62208

50
