"PanelSet S3X stainless 304L, Scotch Brite® finish, H400xW600xD200 mm." - Schneider Electric - NSYS3X4620

"PanelSet S3X stainless 304L, Scotch Brite® finish, H400xW600xD200 mm." - Schneider Electric - NSYS3X4620

NSYS3X4620

"PanelSet S3X stainless 304L, Scotch Brite® finish, H400xW600xD200 mm." - Schneider Electric - NSYS3X4620

Enclosures

~~List Price £406.14 +VAT~~

Our Price £304.61 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

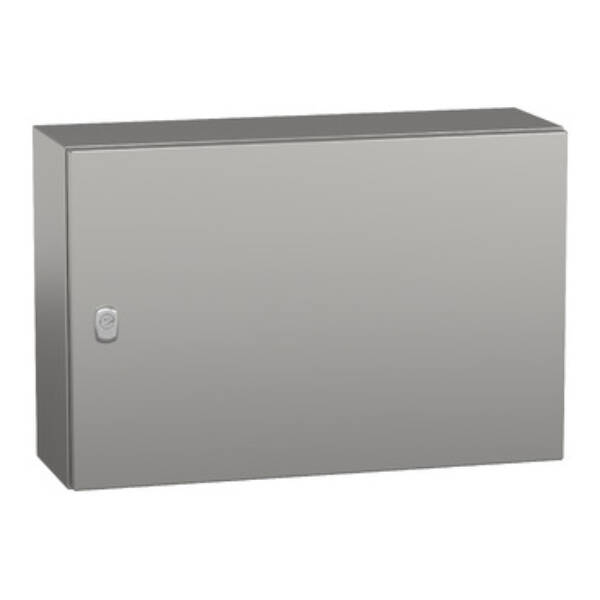

"PanelSet S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion" "It is certified CAN/CSA 22 and UL 508 type A, and has a nominal height, width and depth of 400mm, 600mm and 200mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish, and features a single piece body, cross-shaped structure and gutter shaped front rail" "The door has a reversible (120°) opening side and is secured with a 3mm double-bar lock" "The door can be removed for maintenance purposes" "The enclosure has an IK10 (IEC62262) rating for high impact and an IP66 (IEC60529) rating for high resistance to dust and water" "The net weight of the enclosure is 9,124kg"

Brand: Schneider Electric
Part No: NSYS3X4620
Weight (kg): 9.12 kg
Couplable: FALSE
With mounting plate: FALSE
Freestanding: FALSE
With glazed door: FALSE
Suitable for metrical mounting: TRUE
With cover: FALSE
RAL-number: 7035
Transparent cover: FALSE
Height: 400
Degree of protection (IP): IP55
Pitched roof: FALSE
Floor standing wall model: FALSE
Colour: Stainless steel
Width: 600
Intermediate mounting: FALSE
Surface finishing: Other
Material: Stainless steel
Number of doors: 1
Number of locks: 1
Suitable for outdoor set-up: FALSE
Corner model: FALSE
Suitable for wall mounting: TRUE
Material quality: Stainless steel 304 (V2A)
Suitable for wall built-in: FALSE
Depth: 200
Pre-stamping: FALSE
Max. permissible load of the mounting plate according to IEC 62208: 250
With door: TRUE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
With rear door: FALSE
Pole fastening: FALSE
Max. permissible load of the enclosure according to IEC 62208: 50
Max. permissible load of the door(s) according to IEC 62208: 50

Datasheet for NSYS3X4620 - "PanelSet S3X stainless 304L, Scotch Brite® finish, H400xW600xD200 mm." - Schneider Electric - NSYS3X4620
