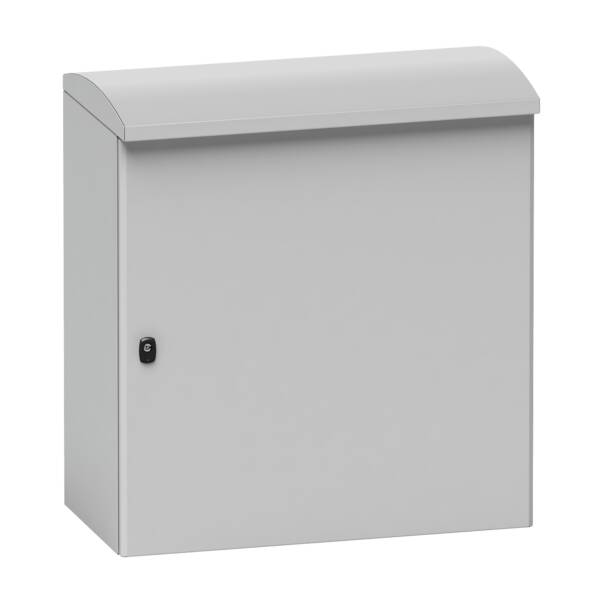

"This S3HD is a heavy-duty (HD) outdoor enclosure designed for wall-mounting and floor-standing with a plinth, made of coated steel" "It is suitable for installation in private areas with harsh environments" "The body is made of steel with anti-corrosive painting, providing corrosion resistance up to the C4H level according to ISO 12944:2018" "The enclosure has nominal dimensions of 858mm in height with a canopy, 600mm in width, and 330mm in depth with a canopy height of 58mm" "The doors are reversible up to 120° and are secured with a three-point lock and a 3mm double-bar locking system" "The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish" "The enclosure includes one body, one door, one 3mm double locking system, one door compass, one canopy bolted to the body, one gland plate bolted to the body, and one document holder" "The net weight of the enclosure is 26,6kg" "The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device" "The S3HD has a rating of IK10 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection" "It conforms to UL 508 A 2007, IEC 61969-3 2011 (Bureau Veritas), IEC 61439-5 2010 (Bureau Veritas), IEC 62208 2011 (DEKRA), and ISO 12944 2007 (Bureau Veritas)" "Additionally, the enclosure is certified by BV, LR, UL, GL, DNV, and cUL"

Brand

Schneider Electric

Range

PanelSeT for outdoors operation​

Part No

NSYS3HD8630

Weight (kg)

26.60 kg

Type

Spacial SFHD / S3HD, Thalassa PHD

Surface protection

Powder coating

With mounting plate

FALSE

Number of conduit inlets

2

Built-in depth

300

Type of cover

Door

Extension possible

FALSE

Suitable for lightning protection

TRUE

RAL-number

7035

Type of door

Single

Height

858

Degree of protection (IP)

IP66

Internal depth

272

Transparent cover/door

FALSE

Cover model

None

Plate thickness cabinet

1.2

Plate thickness door/cover

1.5

Colour

Grey

Circuit integrity

None

Width

600

Suitable for outdoor use

TRUE

Material housing

Steel

Mounting method

Surface mounted (plaster)

Protection class

II

Depth

330

With lock

TRUE

Impact strength

IK10

Degree of protection (NEMA)

4
