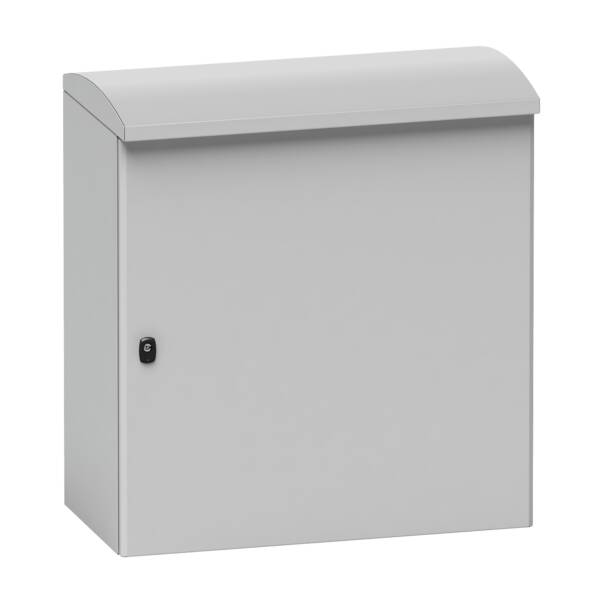

"This S3HD is a heavy-duty outdoor enclosure designed for wall-mounting or floor-standing with a plinth, made of coated steel" "It is suitable for installation in private areas with harsh environments" "The body is constructed of steel with anti-corrosive paint that provides corrosion resistance up to C4H level according to ISO 12944:2018" "The enclosure doors are reversible up to 120° and secured with a three-point lock and a 3mm double-bar locking system" "The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish" "The enclosure has nominal dimensions of 658mm height with canopy, 600mm width, and 330mm depth with a canopy height of 58mm" "It includes one body, one door, one 3mm double locking system, one door compass, one canopy bolted to the body, one gland plate bolted to the body, and one document holder, with a net weight of 25kg" "The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device" "The S3HD is rated IK10 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection" "It conforms to UL 508 A 2007, IEC 61969-3 2011 (Bureau Veritas), IEC 61439-5 2010 (Bureau Veritas), IEC 62208 2011 (DEKRA), and ISO 12944 2007 (Bureau Veritas)" "The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL"

Brand

Schneider Electric

Range

PanelSeT for outdoors operation​

Part No

NSYS3HD6630

Weight (kg)

25.00 kg

Type

Spacial SFHD / S3HD, Thalassa PHD
