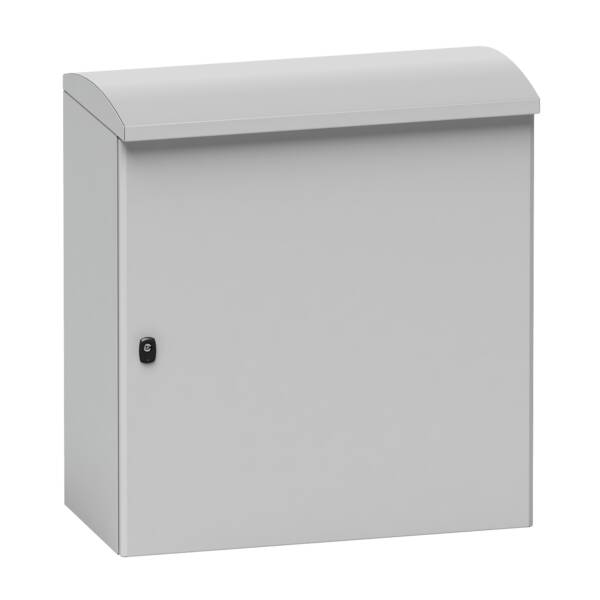

"This S3HD is a heavy-duty outdoor enclosure designed for wall-mounting or floor-standing with an optional plinth" "It is suitable for installation in private areas with harsh environments" "The enclosure is constructed with anti-corrosive painted steel that provides corrosion resistance up to C4H level, in accordance with ISO 12944:2018 standards" "The enclosure's doors are reversible up to 120° and are secured with a three-point lock, featuring a 3mm double-bar locking system" "The enclosure's dimensions are nominal, measuring 1062mm in height with a canopy, 800mm in width, and 430mm in depth with a canopy, with a canopy height of 62mm" "It is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish" "The enclosure comes with one body, one door, one 3mm double locking system, one door compass, one canopy bolted to the body, one gland plate bolted to the body, and one document holder" "The net weight of the enclosure is 48,7kg" "The S3HD is rated IK10 (IEC 62262) for impact resistance and IP55 (IEC 60529) with a ventilated plinth, and IP66 (IEC 60529) for dust and water protection" "It conforms to UL 508 A 2007, IEC 61969-3 2011 (Bureau Veritas), IEC 61439-5 2010 (Bureau Veritas), IEC 62208 2011 (DEKRA), and ISO 12944 2007 (Bureau Veritas) standards" "The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL" "The enclosure can be fixed to a wall using optional stainless-steel wall fixing lugs or to a post using an optional HD post fixing device" "Additionally, it comes with a ventilated plinth for floor-standing"

Brand

Schneider Electric

Range

PanelSeT for outdoors operation​

Part No

NSYS3HD10840

Weight (kg)

48.70 kg

Type

Spacial SFHD / S3HD, Thalassa PHD

Surface protection

Powder coating

Number of conduit inlets

2

With mounting plate

FALSE

Type of covering

Door

Built-in depth

400

Extension possible

FALSE

Suitable for lightning protection

TRUE

RAL-number

7035

Type of door

Single

Height

1062

Inner depth

372

Transparent cover/door

FALSE

Degree of protection (IP)

IP66

Cover model

None

Material plate thickness cabinet

1.5

Material plate thickness door/cover

1.5

Colour

Grey

Width

800

Circuit integrity

None

Suitable for outdoor use

TRUE

Housing material

Steel

Mounting method

Surface mounted

Protection class

II

Depth

430

With lock

TRUE

Impact strength

IK10

Degree of protection (NEMA)

4
