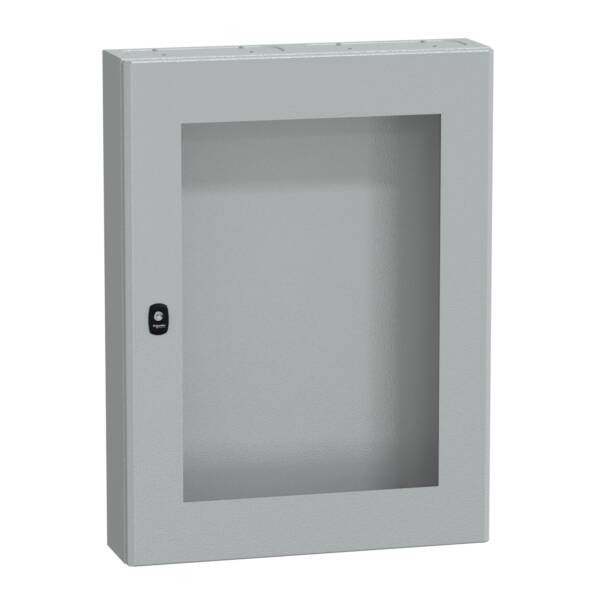

This S3DM is an enclosure designed for wall-mounting The body is made of steel with an epoxy-polyester powder surface finish and the door is made of steel and security glass The enclosure has nominal dimensions of 800mm height, 600mm width, and 150mm depth The doors are secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) The enclosure comes with two cable gland plates (top and bottom), one body, one door, one 3mm double locking system, and one document holder The enclosure is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It conforms to IEC 62208 and is certified by LR, GL, BV, UL, cUL, and DNV The enclosure is also designed for installation of modular chassis DLM The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device This compact enclosure is BV, DNV, GL, LR, c. UL certified. This compact enclosure is BV, DNV, GL, LR, c. UL certified.

Brand

Schneider Electric

Part No

NSYS3DM8615T

Weight (kg)

19.91 kg

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

Suitable for metrical mounting

TRUE

RAL-number

7035

Transparent cover

FALSE

Height

800

Degree of protection (IP)

IP66

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

600

Intermediate mounting

FALSE

Surface finishing

Powder coating

Material

Steel

Number of doors

1

Corner model

FALSE

Suitable for outdoor set-up

FALSE

Number of locks

1

Suitable for wall mounting

TRUE

Material quality

Other

Suitable for wall built-in

FALSE

Depth

150

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

250

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

With rear door

FALSE

Pole fastening

TRUE

Max. permissible load of the enclosure according to IEC 62208

50
