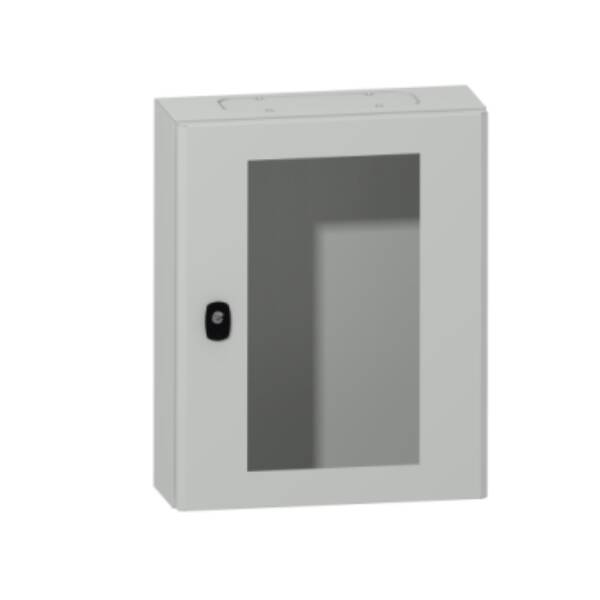

The PanelSet S3DM wall-mounting compact enclosure comes in grey colour and designed for modular distribution application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 500 mm x (D) 150 mm. It is designed for installation of a modular chassis DLM. It features a gutter-shaped front rail double sheet thickness, single piece body. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is BV, DNV, GL, LR, c. UL certified. This compact enclosure is BV, DNV, GL, LR, c. UL certified.

Brand

Schneider Electric

Part No

NSYS3DM5415T

Weight (kg)

7.47 kg

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

Suitable for metrical mounting

TRUE

RAL-number

7035

Transparent cover

FALSE

Height

500

Degree of protection (IP)

IP66

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

400

Intermediate mounting

TRUE

Surface finishing

Powder coating

Number of doors

1

Material

Steel

Number of locks

1

Suitable for outdoor set-up

FALSE

Corner model

FALSE

Suitable for wall mounting

TRUE

Material quality

Other

Depth

150

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

Other

With rear door

FALSE

Pole fastening

TRUE
