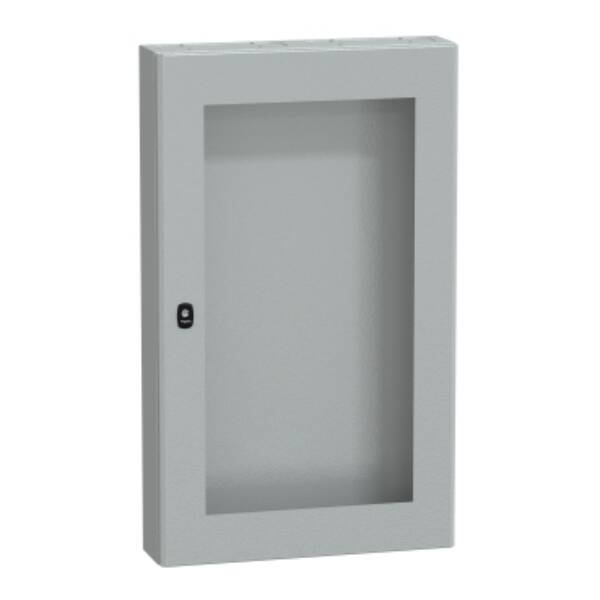

This S3DM is a modular distribution enclosure designed for wall-mounting and made of steel It has nominal dimensions of 1000mm height, 600mm width and 150mm depth, with a glazed door The door is reversible up to 120° and secured with a three-point lock and 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder structured finish It comes with two cable gland plates (top and bottom), one body, one door, one lock and one document holder The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device This S3DM is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It is certified by DNV, cUL, BV, LR, UL, and GL The enclosure is also conforming to IEC 62208 It has a gutter-shaped front rail double sheet thickness and a single piece body The accessibility for operation is from the front This compact enclosure is BV, DNV, GL, LR, c. UL certified.

Brand

Schneider Electric

Part No

NSYS3DM10615T

Weight (kg)

23.80 kg

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

Suitable for metrical mounting

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1000

Degree of protection (IP)

IP66

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

600

Intermediate mounting

FALSE

Surface finishing

Powder coating

Material

Steel

Number of doors

1

Corner model

FALSE

Suitable for outdoor set-up

FALSE

Number of locks

1

Suitable for wall mounting

TRUE

Material quality

Other

Suitable for wall built-in

FALSE

Depth

150

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

250

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

With rear door

FALSE

Pole fastening

TRUE

Max. permissible load of the enclosure according to IEC 62208

50
