"PanelSet S3DB H300xW500xD150. IP66, IK10, RAL7035. No" - Schneider Electric - NSYS3DB3515

"PanelSet S3DB H300xW500xD150. IP66, IK10, RAL7035. No" - Schneider Electric - NSYS3DB3515

NSYS3DB3515

Spacial S3DB H300xW500xD150. IP66, IK10, RAL7035. No - Schneider Electric - NSYS3DB3515

Enclosures

~~List Price £148.62 +VAT~~

Our Price £111.47 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

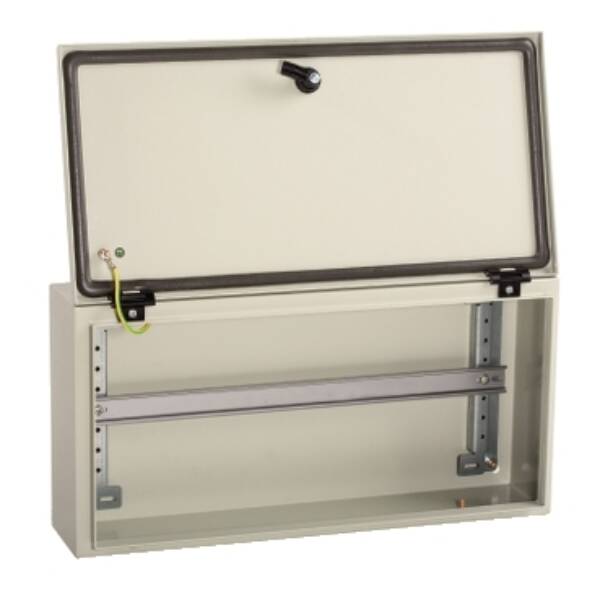

Spacial S3DB compact enclosure. H is300xW is500xD is150 mm. For equipping with terminal. No mounting plate or cable gland included. 1 front face/door. Wall mounting install (Horz/Vert). Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Certifications is BV, CUL, DNV, GL, LR, UL.

Brand: Schneider Electric
Part No: NSYS3DB3515
Weight (kg): 6.38 kg
With mounting plate: FALSE
With glazed door: FALSE
Wall fastening possible: TRUE
Suitable for metrical mounting: FALSE
craft\elements\db\ElementQuery: 7035
Tackable: FALSE
Height: 300
Degree of protection (IP): IP66
Pitched roof: FALSE
Colour: Grey
Width: 500
craft\elements\db\ElementQuery: Powder coating
Material: Steel
Number of doors: 1
Suitable for outdoor set-up: FALSE
Number of locks: 1
craft\elements\db\ElementQuery: Other
Depth: 150
Wall build in: FALSE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
craft\elements\db\ElementQuery: 4X
Pole fastening: TRUE
With backside door: FALSE
Floor installation possible: FALSE

Datasheet for NSYS3DB3515 - "PanelSet S3DB H300xW500xD150. IP66, IK10, RAL7035. No" - Schneider Electric - NSYS3DB3515

Download
