"PanelSet S3DB . H250xW400xD150. IP66, IK10, RAL7035. No" - Schneider Electric - NSYS3DB25415

"PanelSet S3DB . H250xW400xD150. IP66, IK10, RAL7035. No" - Schneider Electric - NSYS3DB25415

NSYS3DB25415

"PanelSet S3DB . H250xW400xD150. IP66, IK10, RAL7035. No" - Schneider Electric - NSYS3DB25415

Enclosures

~~List Price £121.27 +VAT~~

Our Price £90.95 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

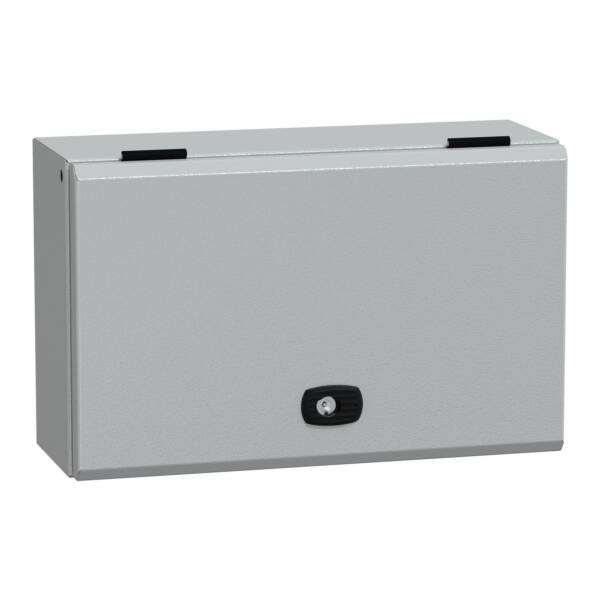

Spacial S3DB compact enclosure. H is250xW is400xD is150 mm. For equipping with terminal. No mounting plate or cable gland included. 1 front face/door. Wall mounting install (Horz/Vert). Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Certifications is BV, CUL, DNV, GL, LR, UL.

Brand: Schneider Electric
Part No: NSYS3DB25415
Weight (kg): 4.18 kg
Couplable: FALSE
With mounting plate: FALSE
Freestanding: FALSE
With glazed door: FALSE
With cover: FALSE
Suitable for metrical mounting: FALSE
RAL-number: 7035
Transparent cover: FALSE
Height: 250
Degree of protection (IP): IP66
Pitched roof: FALSE
Floor standing wall model: FALSE
Colour: Grey
Width: 400
Intermediate mounting: FALSE
Surface finishing: Powder coating
Material: Steel
Number of doors: 1
Suitable for outdoor set-up: FALSE
Number of locks: 1
Corner model: FALSE
Suitable for wall mounting: TRUE
Material quality: Other
Suitable for wall built-in: FALSE
Depth: 150
Pre-stamping: FALSE
Max. permissible load of the mounting plate according to IEC 62208: 250
With door: TRUE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 4X
With rear door: FALSE
Pole fastening: TRUE
Max. permissible load of the enclosure according to IEC 62208: 250
Max. permissible load of the door(s) according to IEC 62208: 50

Datasheet for NSYS3DB25415 - "PanelSet S3DB . H250xW400xD150. IP66, IK10, RAL7035. No" - Schneider Electric - NSYS3DB25415
