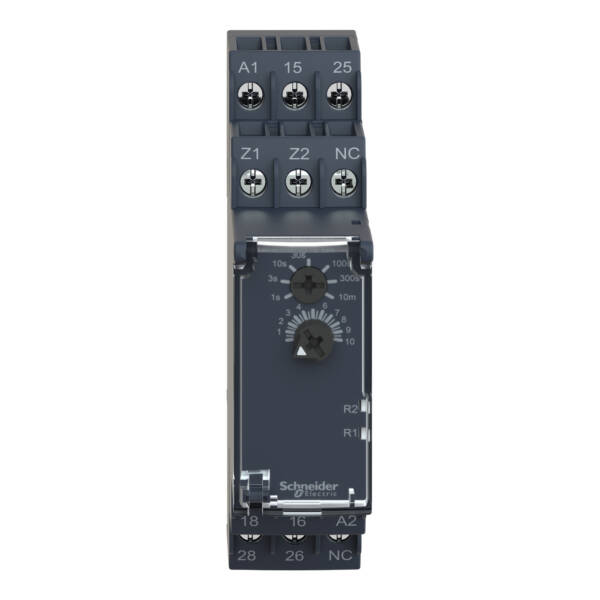

Off-delay Timing Relay - 0.05s…10min - 24…240V AC/DC - 2C/O - Schneider Electric - RE22R2KMR

Off-delay Timing Relay - 0.05s…10min - 24…240V AC/DC - 2C/O - Schneider Electric - RE22R2KMR

RE22R2KMR

Off-delay Timing Relay - 0.05s…10min - 24…240V AC/DC - 2C/O - Schneider Electric - RE22R2KMR

Control

~~List Price £105.55 +VAT~~

Our Price £79.16 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours. It provides function K and it is mountable on DIN rail. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: RE22R2KMR
Weight (kg): 0.11 kg
Type: Harmony Timer Relays
Number of outputs, delayed, normally open contact: 2
Number of outputs, delayed, normally closed contact: 2
Type of electric connection: Screw connection
Function delay on de-energization: TRUE
Clock function, starting with pause, variable: FALSE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pulse, variable: FALSE
Function floating contact on de-energization: FALSE
Function pulse shaping: FALSE
Suitable for front mounting: FALSE
Number of outputs, delayed, change-over contact: 2
Function delay-on energization: FALSE
Height: 90
Voltage type for actuating: AC/DC
With semiconductor output: FALSE
Suitable for DIN rail (top hat rail) mounting: TRUE
Width: 22.5
Rated control supply voltage Us at AC 50HZ: 24…240 V
Rated control supply voltage Us at AC 60HZ: 24…240 V
Function floating contact on energization: FALSE
Nominal current: 5
Depth: 73
Outputs, reversible delayed/undelayed: FALSE
With plug-in socket: FALSE
Function star-delta: FALSE
Function flashing, starting with pause, fixed time: FALSE
Rated control supply voltage Us at DC: 24…240 V
Function flashing, starting with pulse, fixed time: FALSE
Remote operation possible: FALSE
Time range: 0.05…600 s
Suitable for remote control: FALSE

Datasheet for RE22R2KMR - Off-delay Timing Relay - 0.05s…10min - 24…240V AC/DC - 2C/O - Schneider Electric - RE22R2KMR
